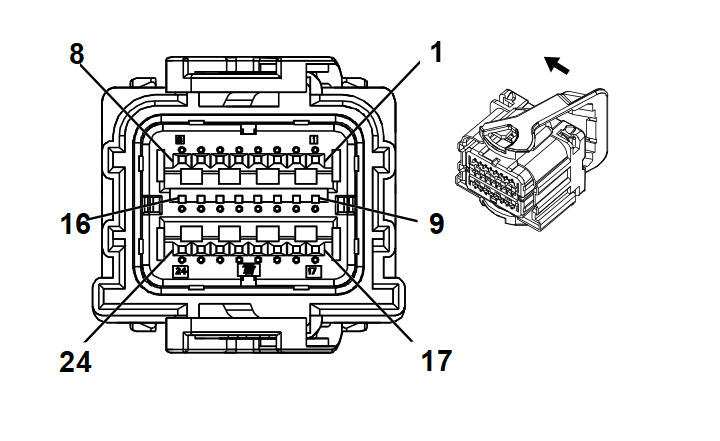

K42 Pedestrian Impact Detection Control Module X1 (B3T+LT4)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13580322
- Service Connector: 19299778
- Description: 24-Way F 0.64 Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19331015 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
19368490 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/RD |
950 |
Ground |
II |
B3T+LT4 |
| 2 |
0.5 |
BK/OG |
951 |
Knock Sensor Shield |
II |
B3T+LT4 |
| 3 |
0.5 |
BK/OG |
7491 |
Left Hood Actuator Low Control |
II |
B3T+LT4 |
| 4 |
0.5 |
WH/RD |
7492 |
Left Hood Actuator High Control |
II |
B3T+LT4 |
| 5 |
0.5 |
VT/RD |
7490 |
Right Hood Actuator High Control |
II |
B3T+LT4 |
| 6 |
0.5 |
BK/OG |
7489 |
Right Hood Actuator Low Control |
II |
B3T+LT4 |
| 7 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
RD/GY |
2840 |
Battery Positive Voltage |
II |
B3T+LT4 |
| 10 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
B3T+LT4 |
| 16 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
B3T+LT4 |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
WH/BU |
5986 |
Serial Data Communication Enable |
I |
B3T+LT4 |
| 19 |
0.5 |
BK/WH |
1651 |
Signal Ground |
I |
B3T+LT4 |
| 20 - 24 |
- |
- |
- |
Not Occupied |
- |
- |
