S82 Windshield Wiper/Washer Switch
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

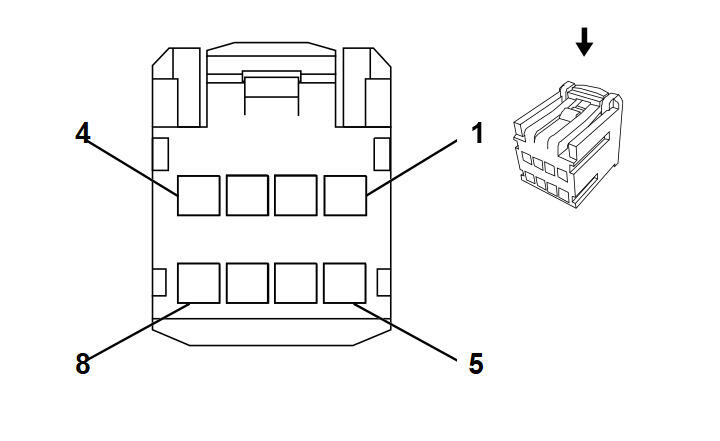

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 19153437
- Service Connector: 13576541
- Description: 8-Way F 1.2 HCM Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
1715 |
Windshield Wiper Switch High Signal |
I |
- |
| 2 |
0.35 |
BK/GY |
6009 |
Windshield Wiper Switch Low Reference |
I |
- |
| 3 |
0.35 |
YE/BU |
1714 |
Windshield Wiper Switch Low Signal |
I |
- |
| 4 |
0.35 |
BN/BU |
775 |
Camera Wash Signal |
I |
DRZ |
| 5 |
0.35 |
WH/BK |
94 |
Windshield Washer Switch Signal |
I |
- |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
