Driver or Passenger Seat Adjuster Memory Module Replacement

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

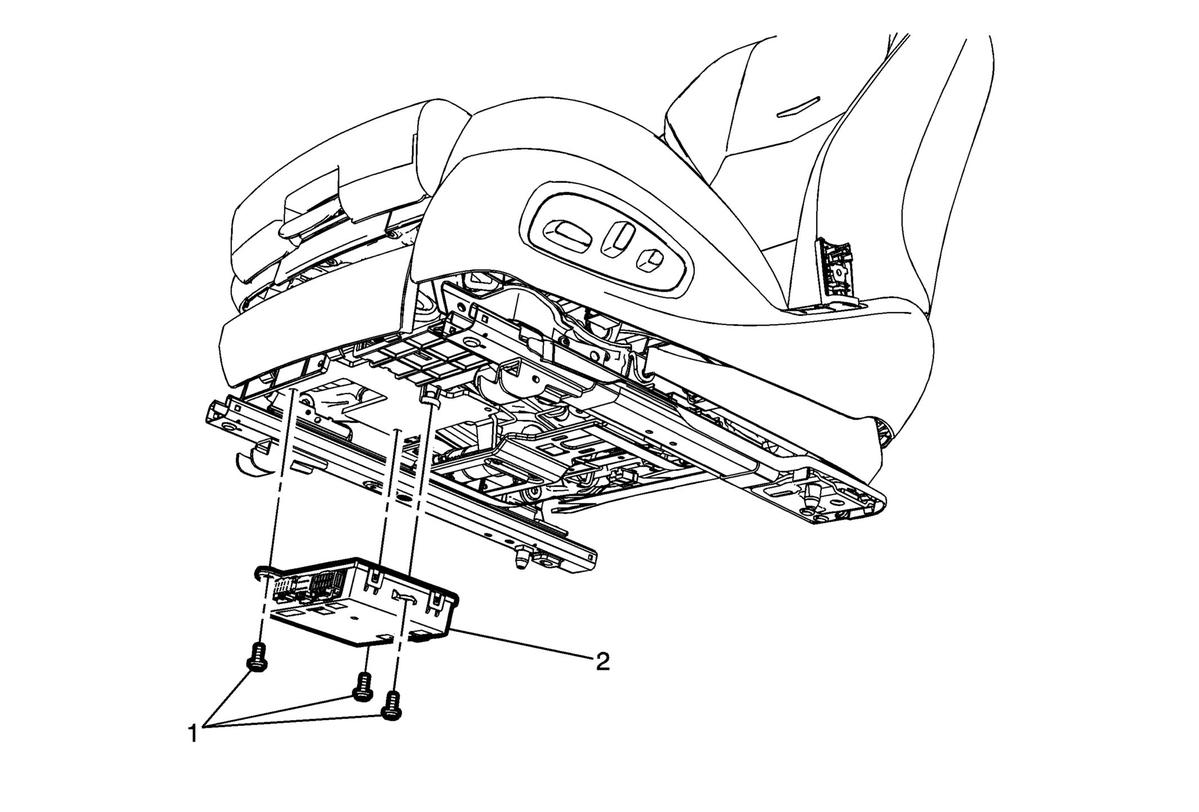

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Driver or Passenger Seat Adjuster Memory Module Procedure Disconnect the electrical connectors. Remove the module from the adjuster memory and wiring harness bracket. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .

Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Driver or Passenger Seat Adjuster Memory Module

Procedure

Disconnect the electrical connectors.
Remove the module from the adjuster memory and wiring harness bracket.
Refer to Control Module References for programing and setup information.
