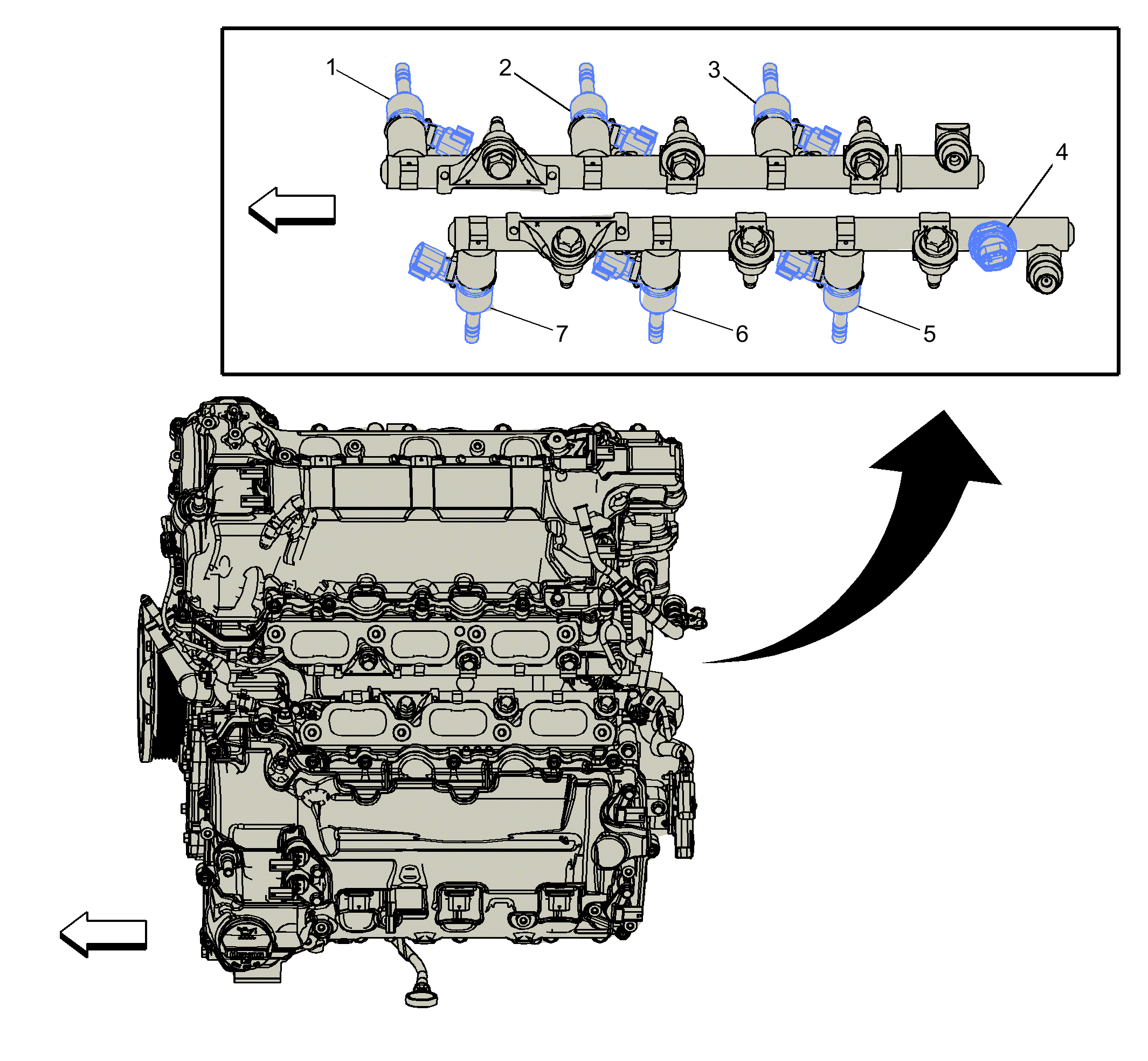

Engine Components - Engine Valley (LGX)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Engine Components - Engine Valley (LGX)
| Items |
|---|
| 1. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LF3/LGX) |
| 2. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LF3/LGX) |
| 3. Q17E Fuel Injector 5 Q17E Fuel Injector 5 (LF3/LGX) |
| 4. B310 Fuel Pressure/Temperature Sensor B310 Fuel Pressure/Temperature Sensor (LGX) |
| 5. Q17F Fuel Injector 6 Q17F Fuel Injector 6 (LF3/LGX) |
| 6. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LF3/LGX) |
| 7. Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LF3/LGX) |
