Engine Components - Right Side Behind Intake Manifold (LTG)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

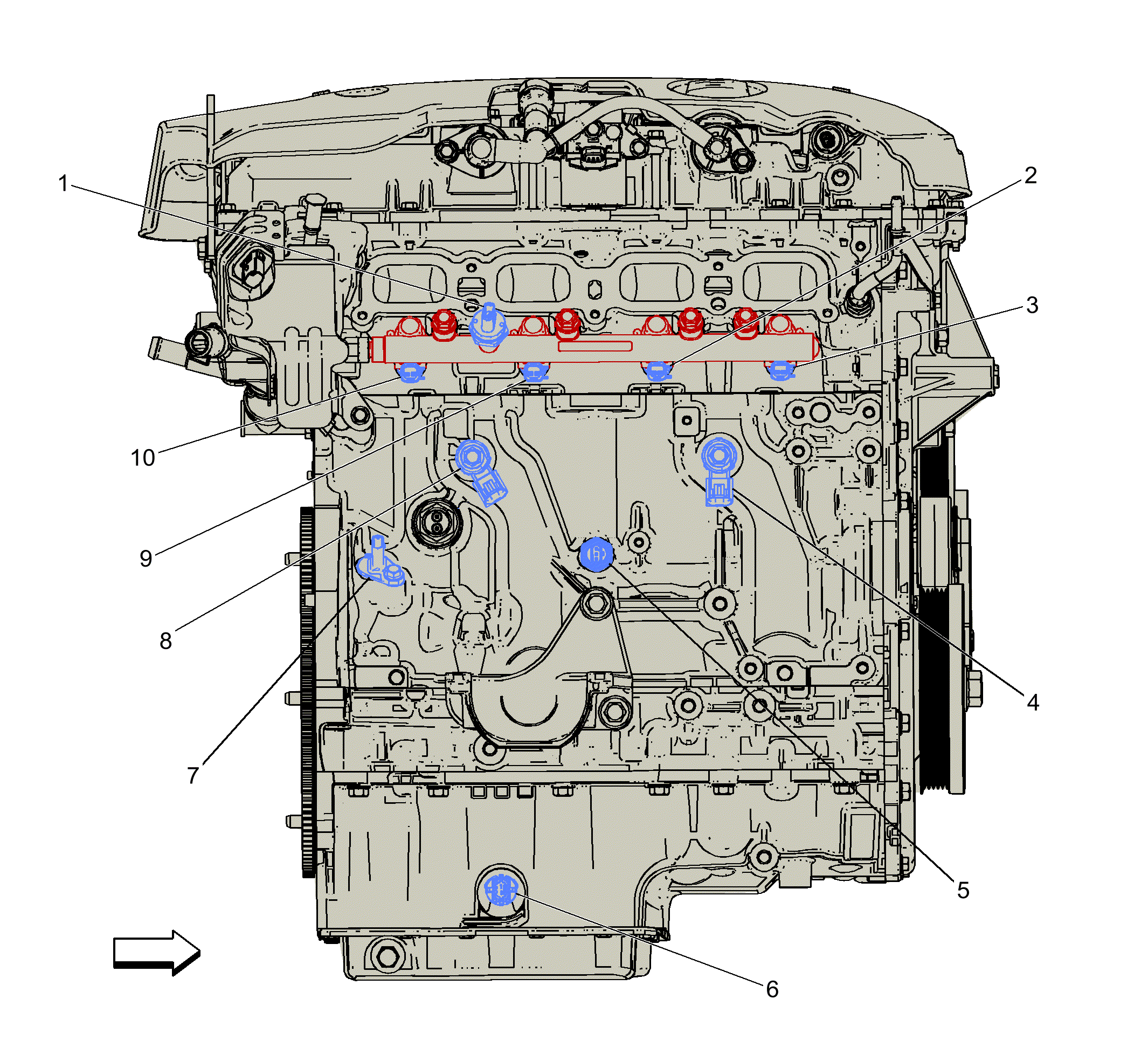

Engine Components - Right Side Behind Intake Manifold (LTG)
| Items |
|---|
| 1. B310 Fuel Pressure/Temperature Sensor B310 Fuel Pressure/Temperature Sensor (LTG) |
| 2. Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LTG) |
| 3. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LTG) |
| 4. B68A Knock Sensor 1 B68A Knock Sensor 1 (LGX/LTG/LT4) |
| 5. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LTG) |
| 6. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LTG) |
| 7. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LTG/LT4) |
| 8. B68B Knock Sensor 2 B68B Knock Sensor 2 (LGX/LTG/LT4) |
| 9. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LTG) |
| 10. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LTG) |
