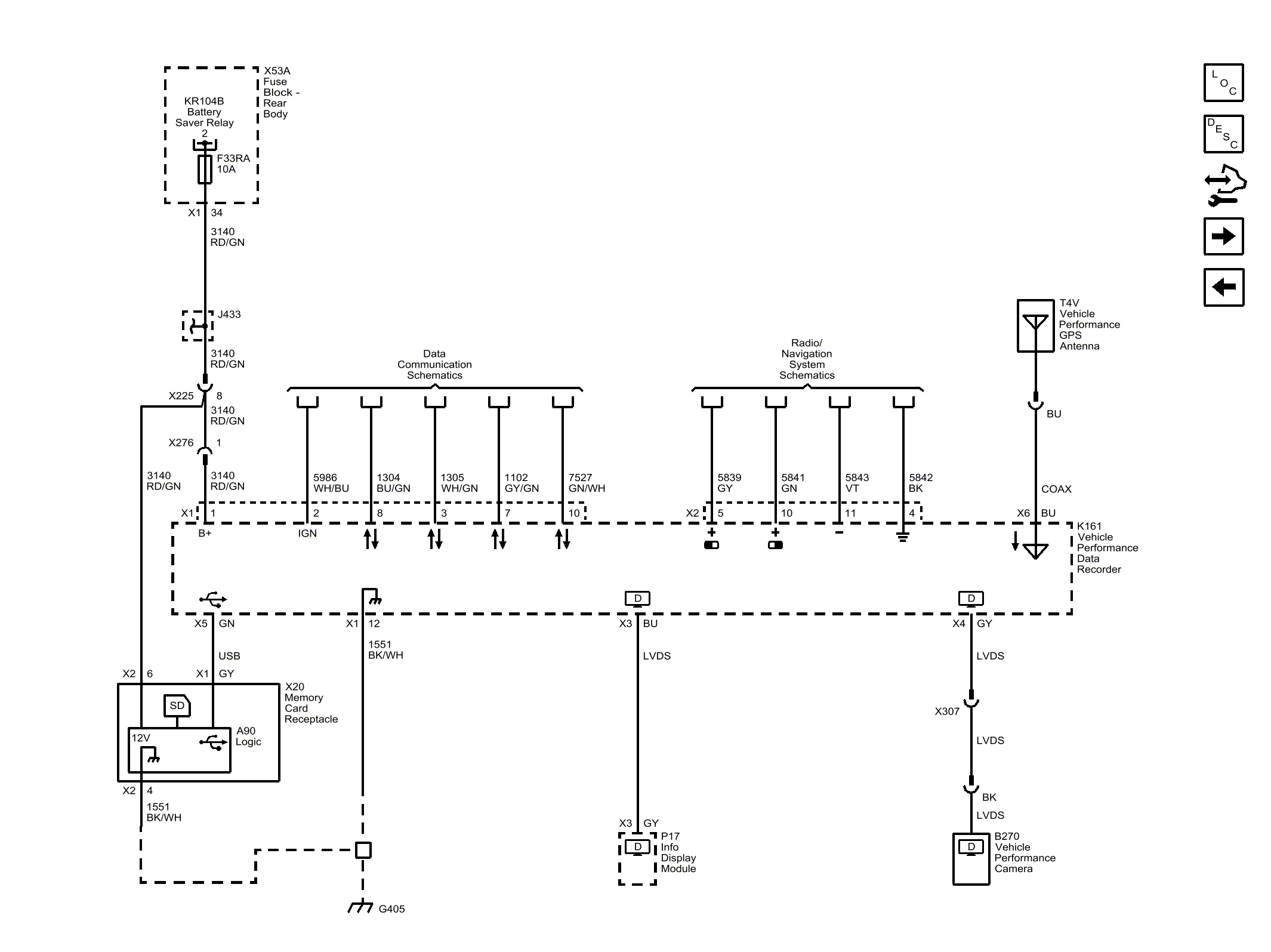

Performance Data Recorder (UQT)

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
GM4694043Courtesy of GENERAL MOTORS COMPANY
