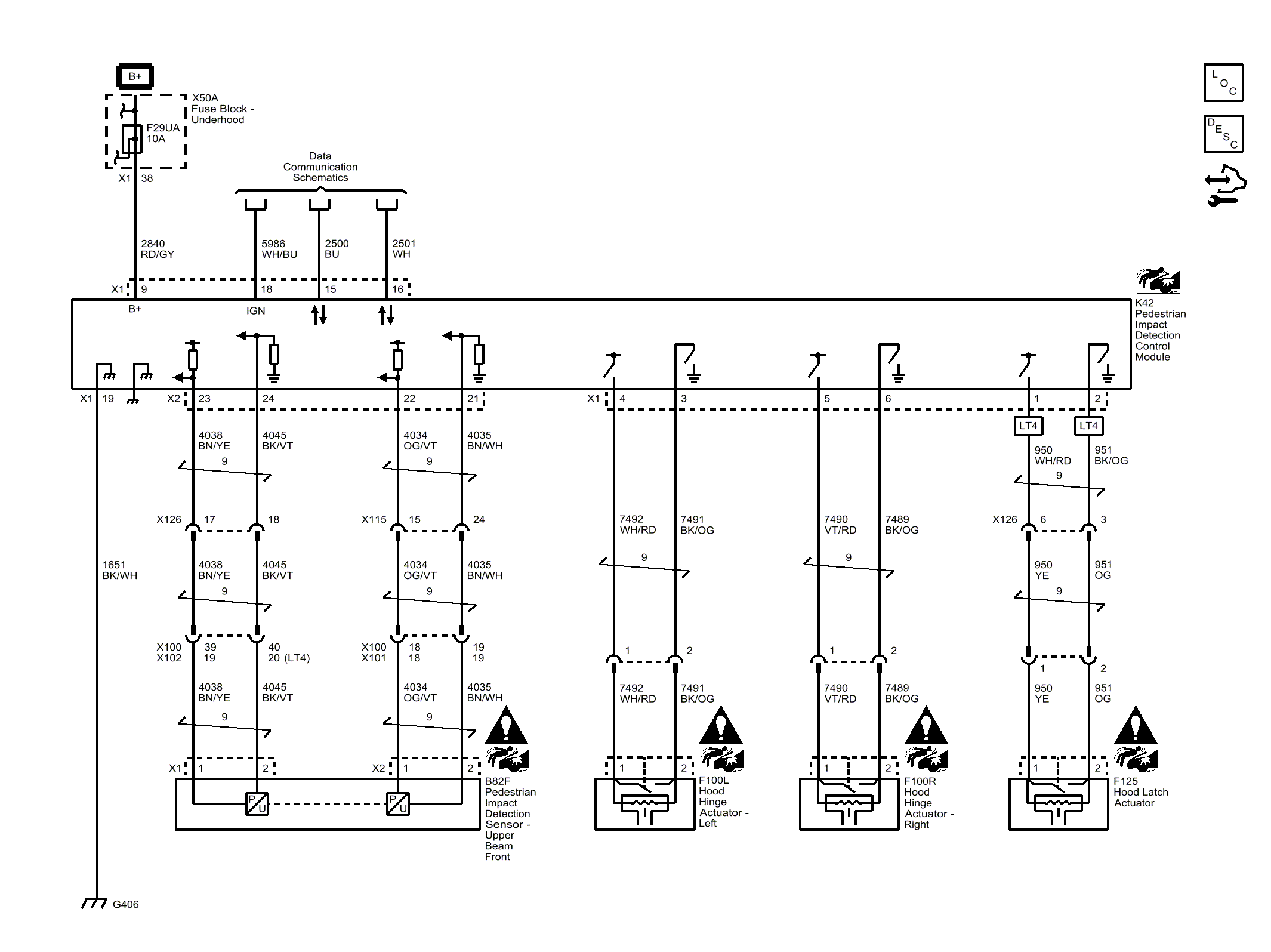

Pedestrian Impact Detection System (B3T)

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
GM4695372Courtesy of GENERAL MOTORS COMPANY
