Active Safety External Communication Module Replacement
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

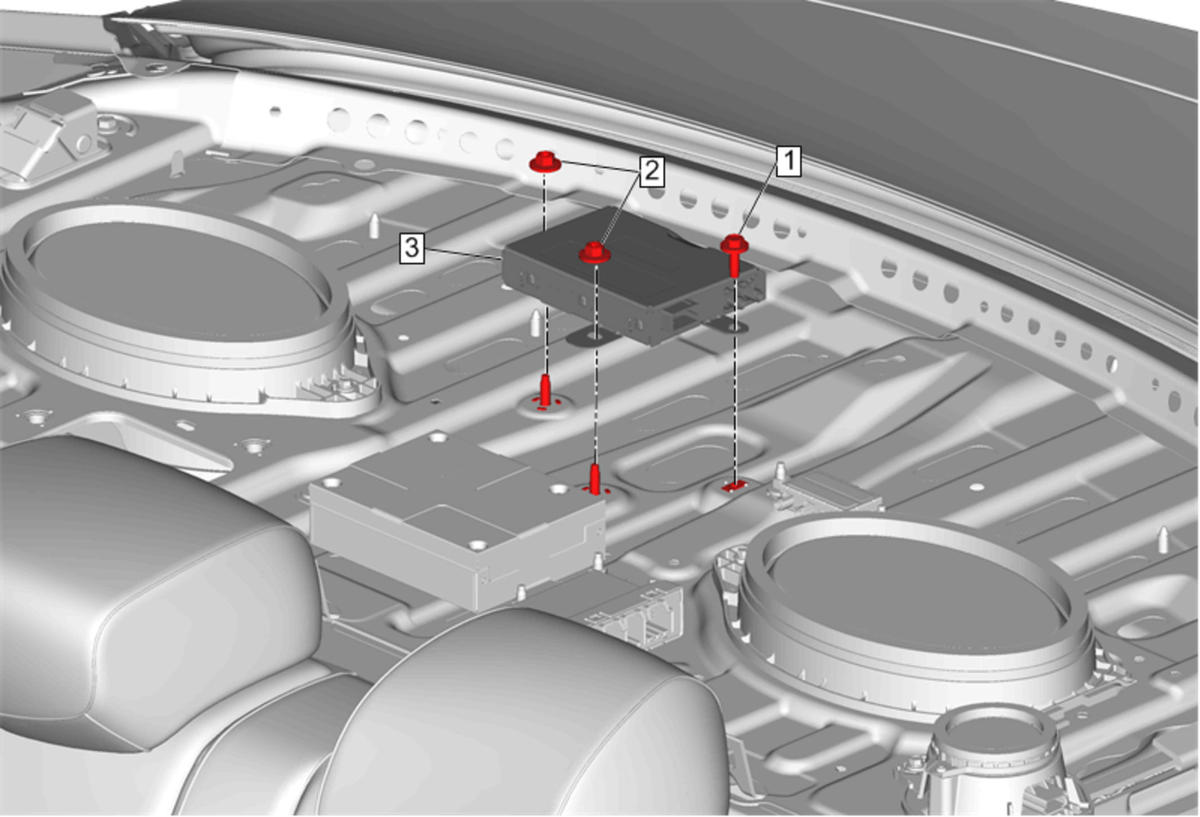

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Window Panel Trim Replacement (With DB3)Rear Window Panel Trim Replacement (Without DB3) |
|
| 1 | Active Safety External Communication Module Bolt
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Active Safety External Communication Module Nut [2x] Tighten 9 N.m (80 lb in) |
| 3 | Active Safety External Communication Module Procedure
|
