Headlamp Automatic Control Module Replacement (Daytime Running Lamp)

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

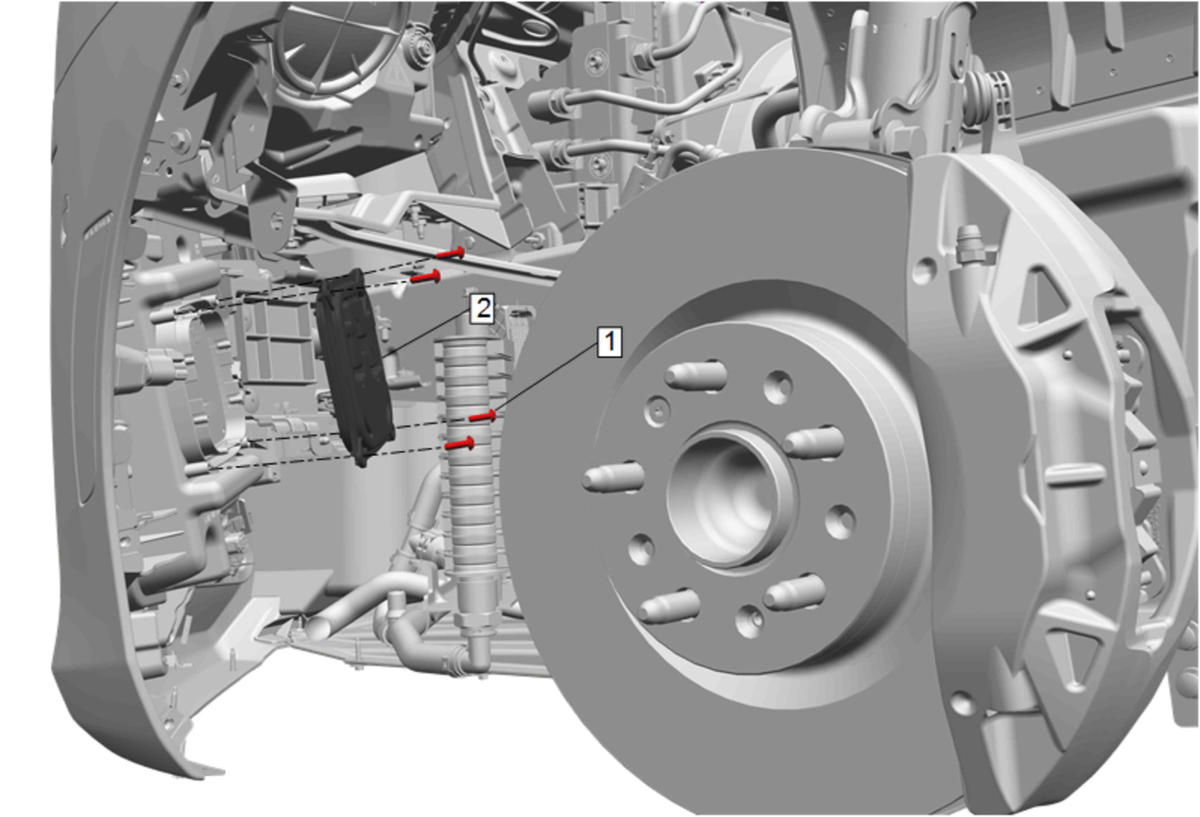

Callout	Component Name
Preliminary Procedures Front Wheelhouse Liner Replacement (CTS)Front Wheelhouse Liner Replacement (CTS-V) { If equipped }Auxiliary Radiator- Left Side - Reposition away - Engine Auxiliary Radiator Replacement - Left Side (LF3 LTG with KL9 V03)
1	Headlamp Automatic Control Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Headlamp Automatic Control Module Procedure Pull the headlamp automatic control module straight out and disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Front Wheelhouse Liner Replacement (CTS)Front Wheelhouse Liner Replacement (CTS-V)
{ If equipped }Auxiliary Radiator- Left Side - Reposition away - Engine Auxiliary Radiator Replacement - Left Side (LF3 LTG with KL9 V03)

Headlamp Automatic Control Module Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Headlamp Automatic Control Module
Procedure
Pull the headlamp automatic control module straight out and disconnect the electrical connector.
