Vehicle Performance Global Positioning System Antenna Replacement

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel trim pad - right side. Instrument Panel Trim Pad Replacement (Left Side)Instrument Panel Trim Pad Replacement (Right Side)

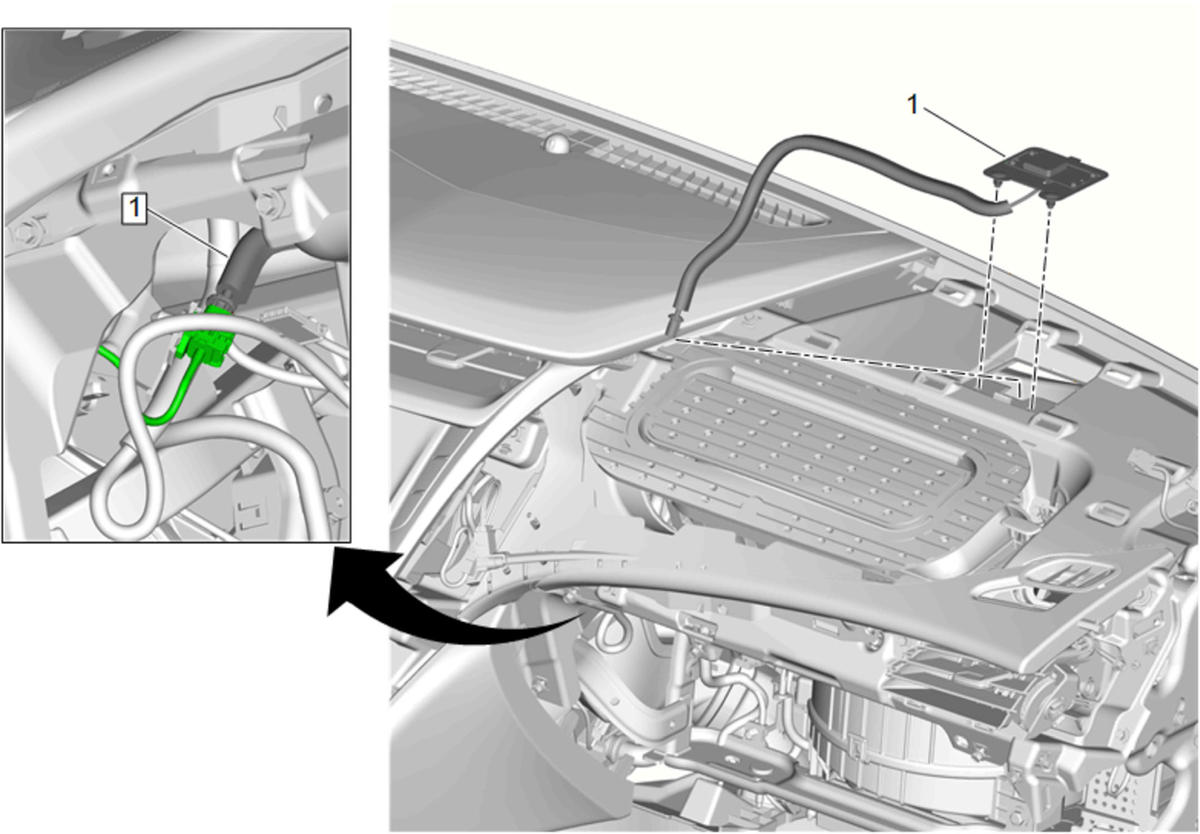

1	Vehicle Performance Global Positioning System Antenna Procedure Attach a suitable fish tape to the antenna connector before removing the vehicle performance global positioning system antenna. Attach the fish tape to the new antenna to aid in installation. Disconnect the electrical connector. Release the two integral retainers and release the vehicle performance global positioning system antenna from the instrument panel.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel trim pad - right side. Instrument Panel Trim Pad Replacement (Left Side)Instrument Panel Trim Pad Replacement (Right Side)

Vehicle Performance Global Positioning System Antenna

Procedure

Attach a suitable fish tape to the antenna connector before removing the vehicle performance global positioning system antenna. Attach the fish tape to the new antenna to aid in installation.
Disconnect the electrical connector.
Release the two integral retainers and release the vehicle performance global positioning system antenna from the instrument panel.
