Ignition Lock Key Transmitter Antenna Replacement - Floor Console

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

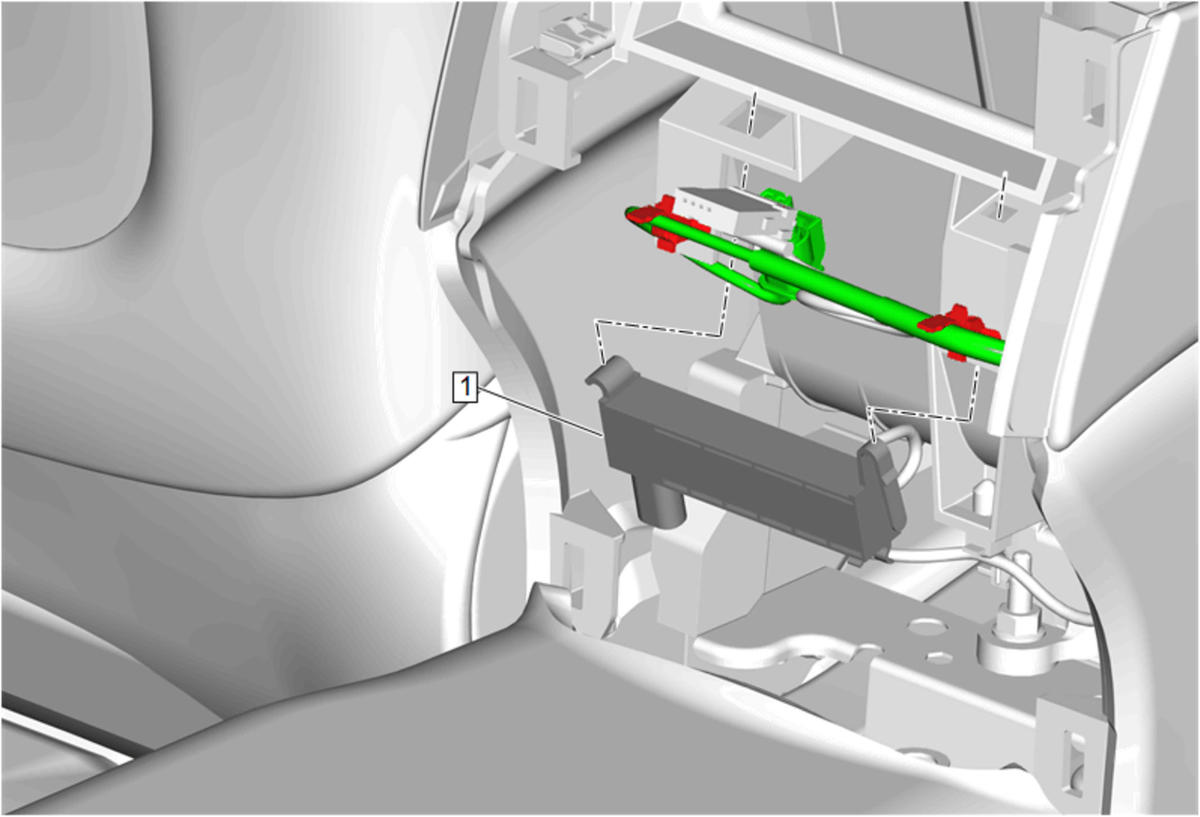

Callout	Component Name
Preliminary Procedure Front Floor Console Rear Trim Panel Replacement
1	Ignition Lock Key Transmitter Antenna Procedure Reposition the wiring harness. Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement

Ignition Lock Key Transmitter Antenna

Procedure

Reposition the wiring harness.
Disconnect the electrical connector.
Release the retaining tab.
