Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

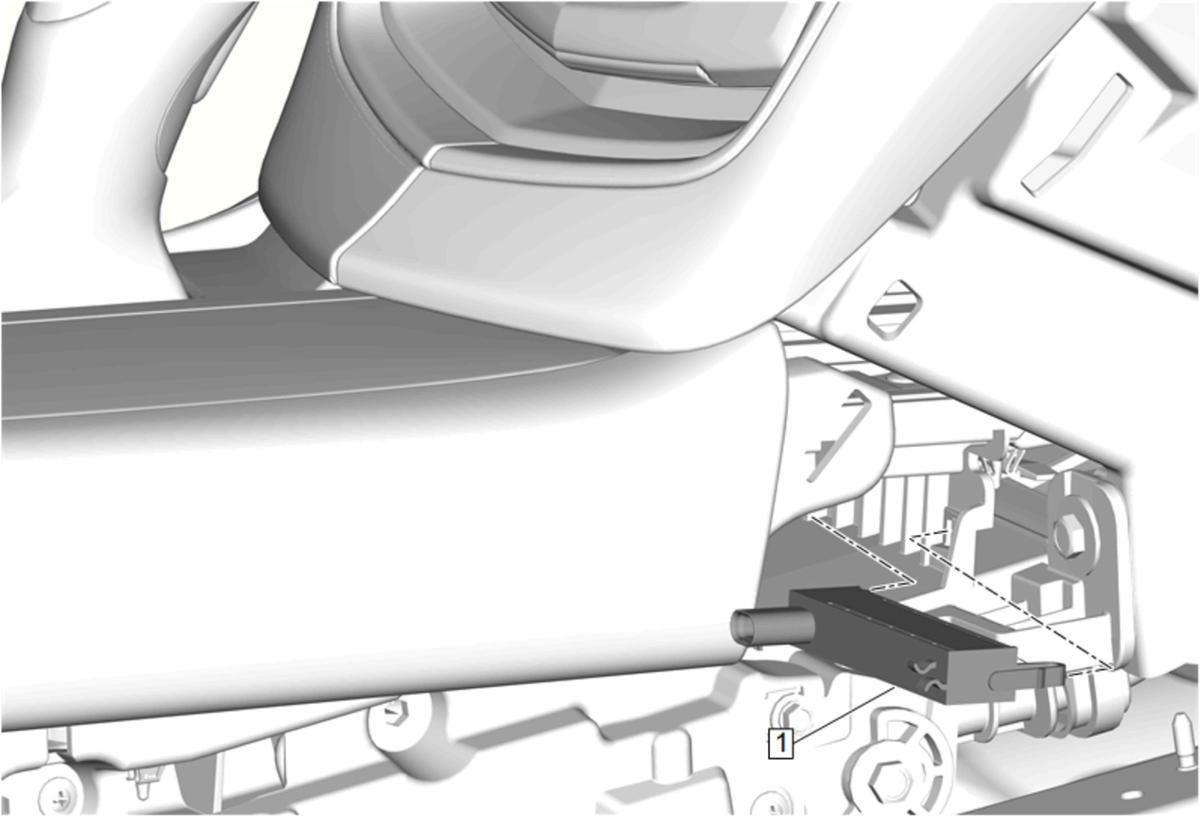

GM5021572Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Lower Center Trim Panel Replacement (Right Side)Instrument Panel Lower Center Trim Panel Replacement (Left Side)
1 Ignition Lock Key Transmitter Antenna

Procedure

  1. Reposition the front floor panel carpet as necessary.
  2. Release the retaining tab.
  3. Disconnect the electrical connector.
