K22 Cooling Fan Control Module (LGX/LTG+V03)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

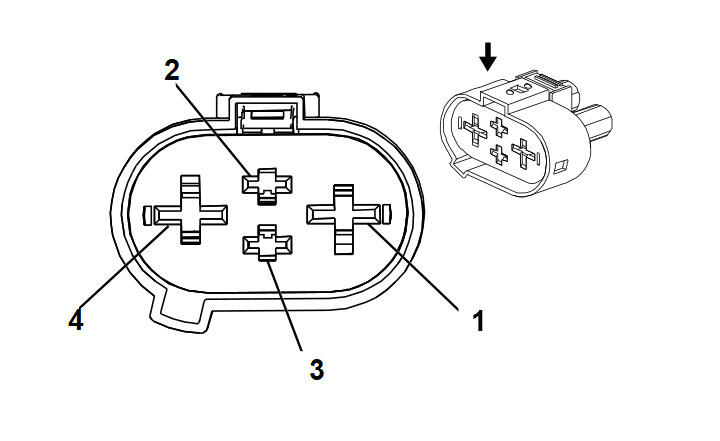

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13161013
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 4.8, 9.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-22 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-40 (BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
6 |
RD/GN |
242 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.75 |
WH/BK |
2366 |
Cooling Fan Control Relay Speed Signal |
II |
- |
| 4 |
6 |
BK |
650 |
Ground |
I |
- |
