Intermediate Steering Shaft Inner Boot Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Lower Extension Insulator Replacement Instrument Panel Tie Bar Replacement

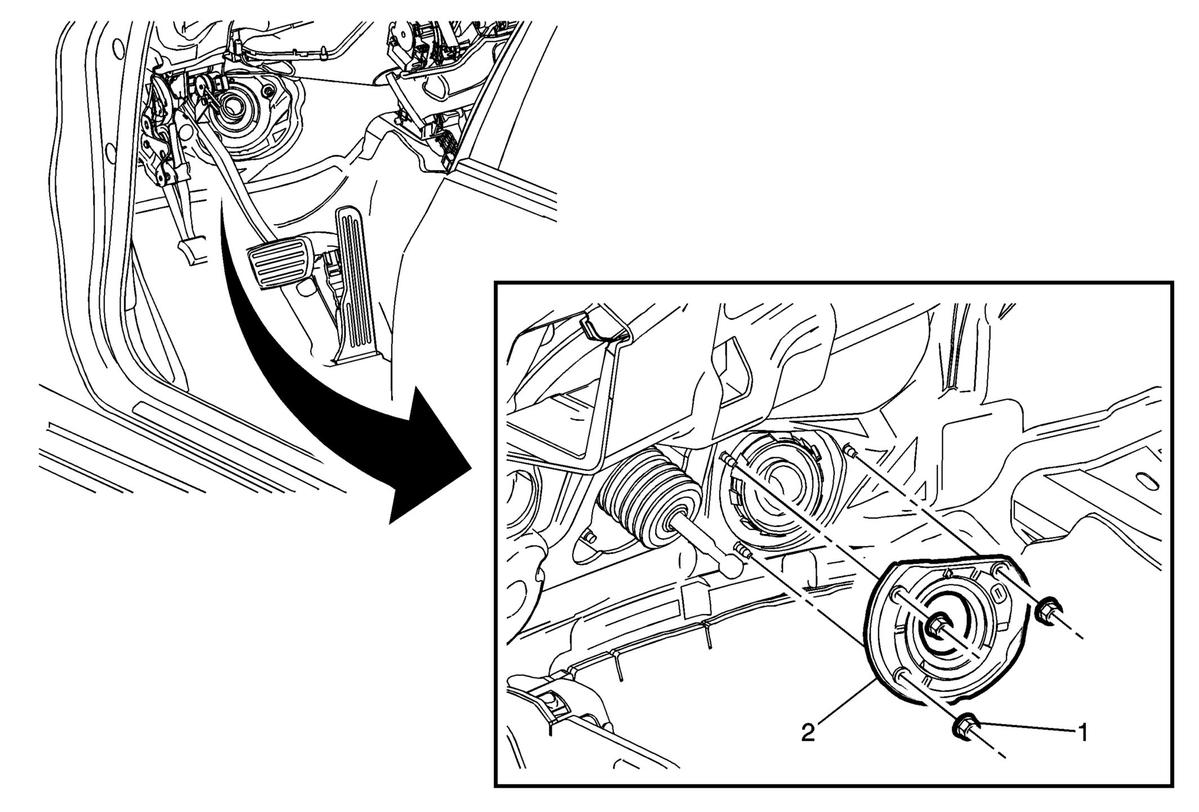

1	Intermediate Steering Shaft Inner Boot Nut[3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Intermediate Steering Shaft Inner Boot Procedure When installing the intermediate steering shaft inner boot, align the boot using the alignment arrow on the outside of the boot and the alignment tab on the inside of the boot.

Callout

Component Name

Preliminary Procedures

Instrument Panel Lower Extension Insulator Replacement
Instrument Panel Tie Bar Replacement

Intermediate Steering Shaft Inner Boot Nut[3x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Intermediate Steering Shaft Inner Boot
Procedure
When installing the intermediate steering shaft inner boot, align the boot using the alignment arrow on the outside of the boot and the alignment tab on the inside of the boot.
