Steering Wheel Replacement

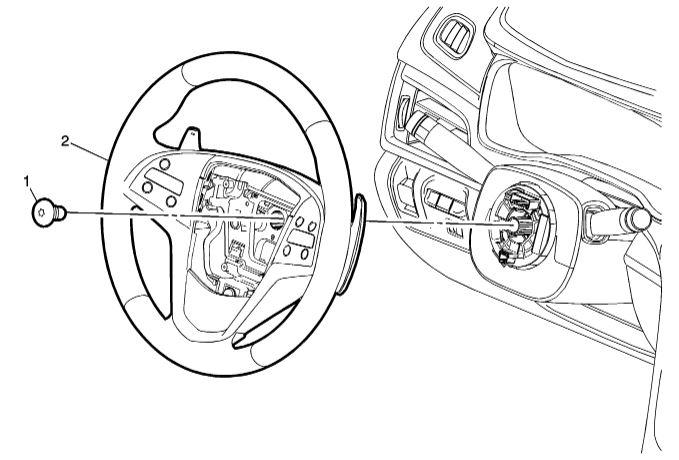

GM3459916Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

Preliminary Procedures

  1. SIR Disabling and Enabling
  2. Steering Wheel Airbag Replacement
1 Steering Wheel Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
  2. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers

Tighten
45 N.m (33 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect the electrical connectors.
  2. Install the steering wheel bolt until 2 to 3 threads are engaged.
  3. Wiggle the steering wheel until the wheel disengages completely.
  4. Steering Wheel Bolt - Remove
  5. Steering Wheel - Remove
  6. Transfer components as necessary.
