UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 1

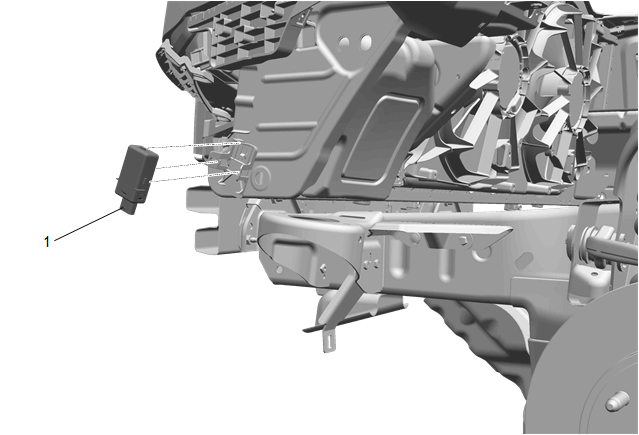

GM5207645Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement (GMC)Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Cadillac)
1 UHF Low Energy Remote Control Access Sensor Transceiver

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
