UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 2

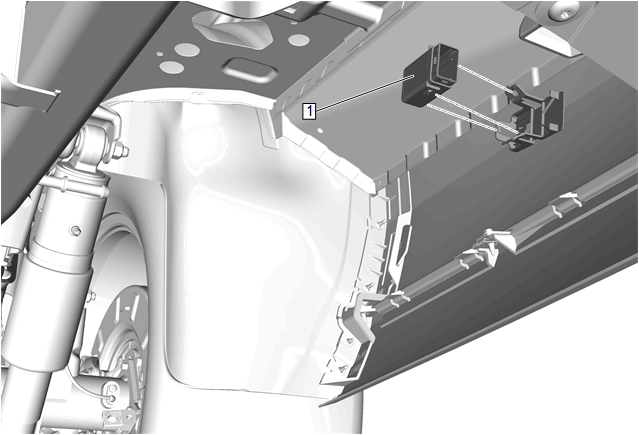

GM5207651Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Lifting and Jacking the Vehicle
1 UHF Low Energy Remote Control Access Sensor Transceiver

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
  3. Lower the vehicle.
