Center Console Components

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

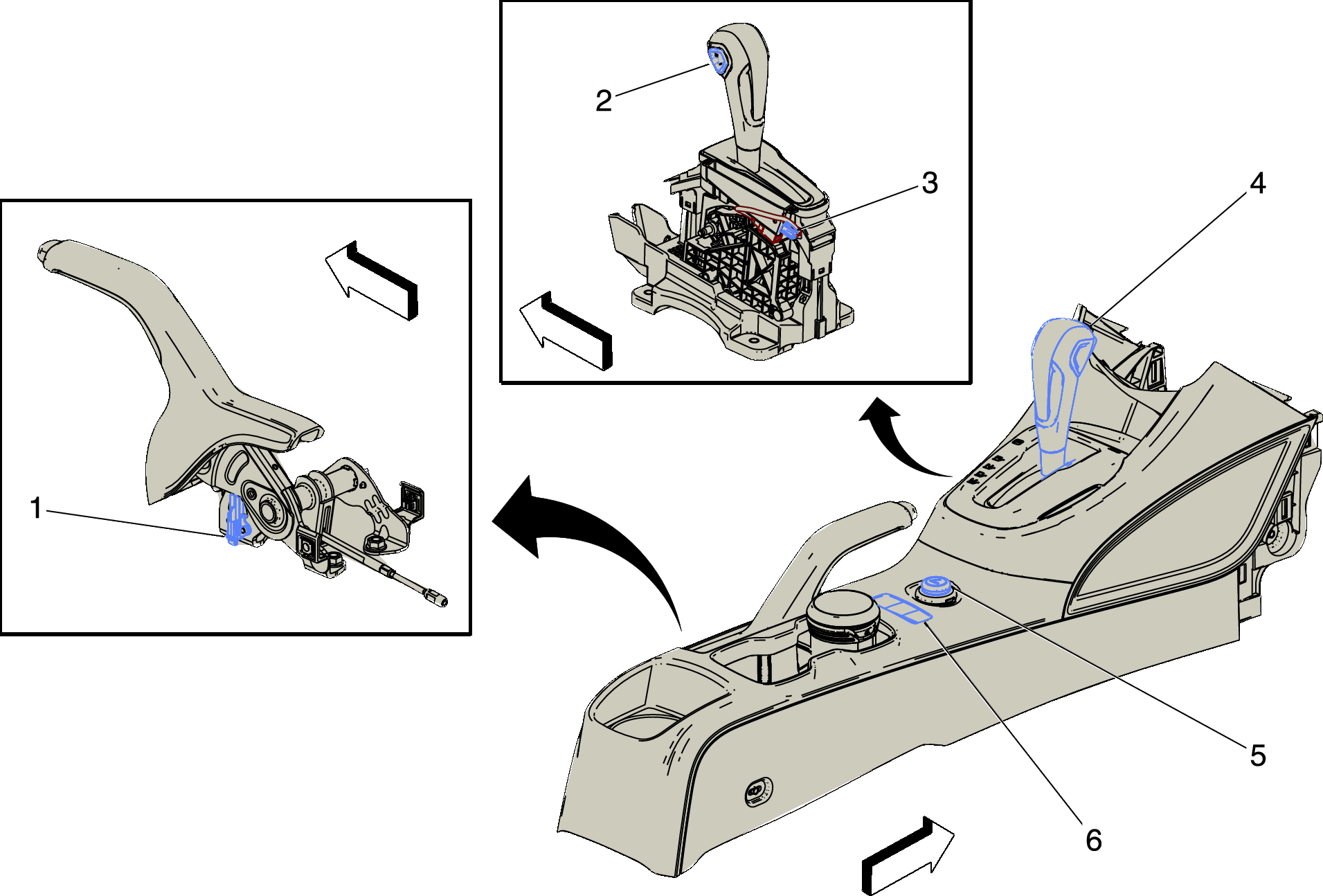

GM2554607Courtesy of GENERAL MOTORS COMPANY
Center Console Components

Items
1. B80 Park Brake Switch B80 Park Brake Switch
2. S2 Transmission Manual Shift Switch (MM1) S3 Transmission Shift Lever
3. P2 Transmission Shift Lever Position Indicator (MM1) P2 Transmission Shift Lever Position Indicator
4. S3 Transmission Shift Lever (MM1)
5. E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle
6. S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console
