K8 Blower Motor Control Module
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
|
|

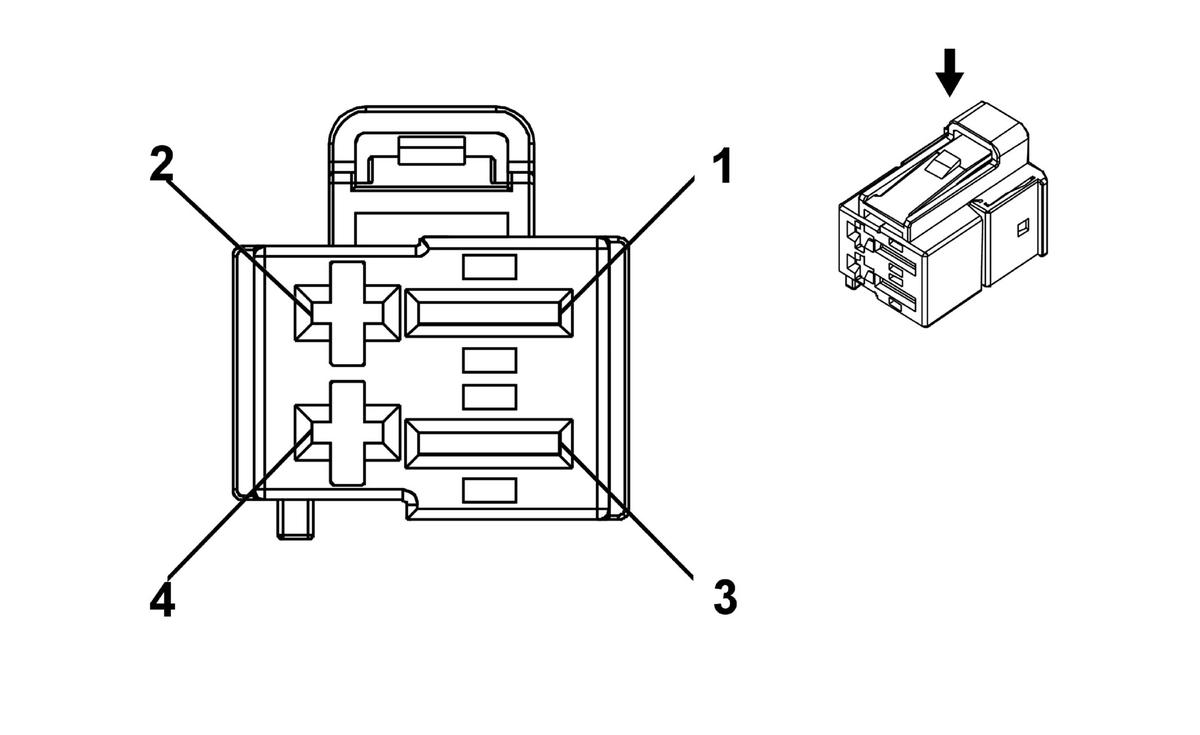

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 1-1418507-2
- Service Connector: 19352990
- Description: 4-Way F 2.8, 6.3 MCON Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-40 (BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| III |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
5 |
BK |
2250 |
Ground |
III |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
2.5 |
RD/VT |
542 |
Battery Positive Voltage |
II |
- |
| 4 |
0.35 |
L-BU/GY |
754 |
Blower Motor Speed Control |
I |
- |
