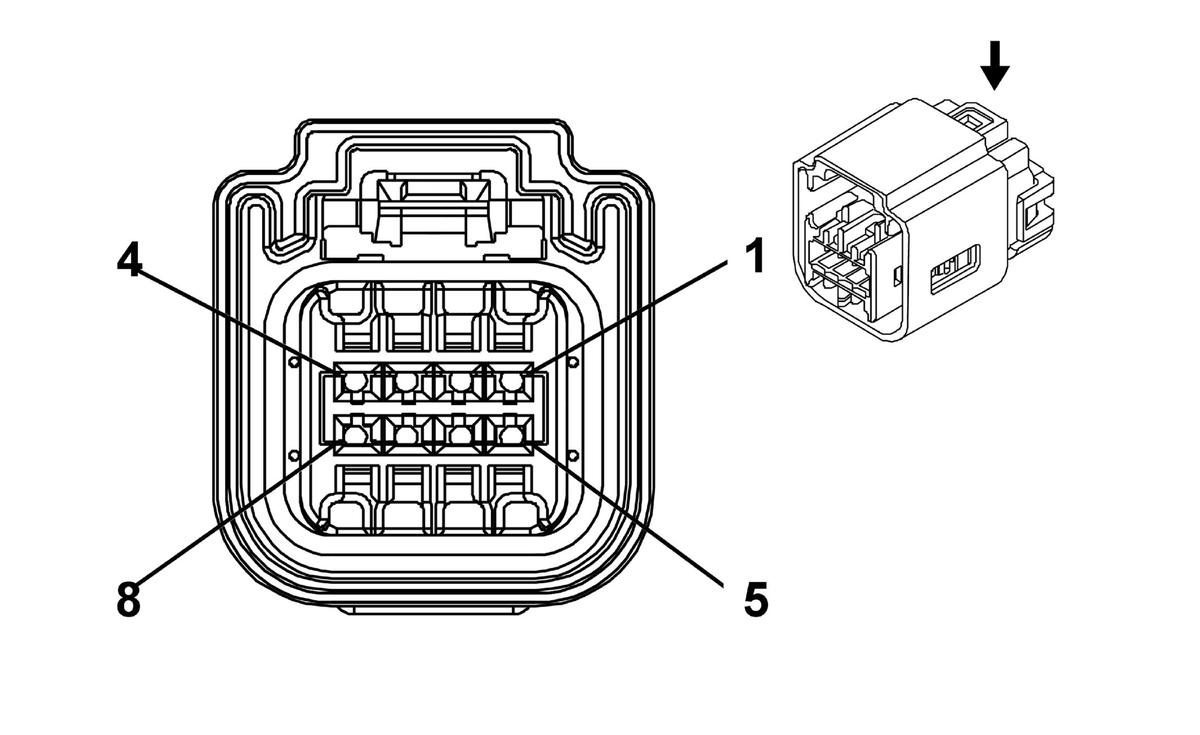

K43 Power Steering Control Module X3
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Power Steering
- OEM Connector: 13572498
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 1.2 OCS Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
BN/RD |
6631 |
Torque Input Sensor High Reference |
I |
- |
| 3 |
0.5 |
BU/GY |
6633 |
Torque Input Sensor Signal |
I |
- |
| 4 |
0.5 |
BK/BU |
6632 |
Torque Input Sensor Low Reference |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
BN/RD |
6631 |
Torque Input Sensor High Reference |
I |
- |
| 7 |
0.5 |
BU/GY |
6633 |
Torque Input Sensor Signal |
I |
- |
| 8 |
0.5 |
BK/BU |
6632 |
Torque Input Sensor Low Reference |
I |
- |
