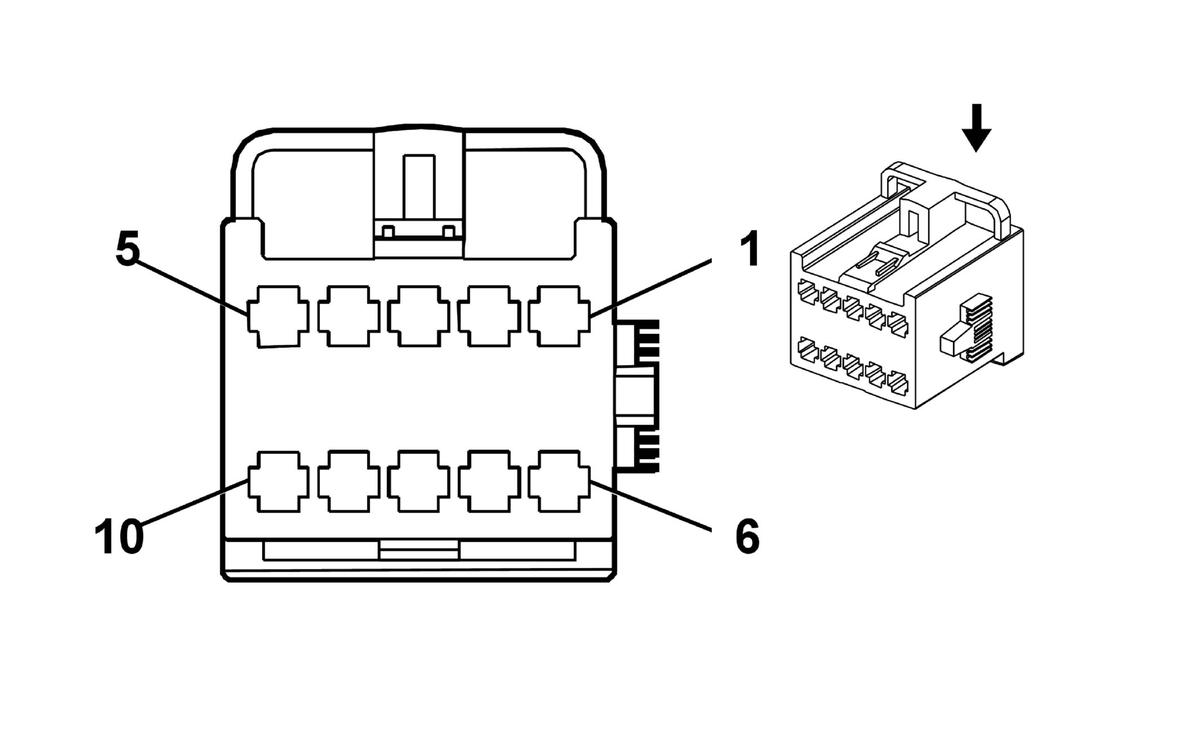

K43 Power Steering Control Module X1 (NJ1)
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13527907
- Service Connector: 13395397
- Description: 10-Way F 1.5 Micro-Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575773 |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13575774 |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH/BU |
5986 |
Serial Data Communication Enable |
I |
NJ1+(UE1/IOR/AYF) |
| 2 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
II |
NJ1 |
| 3 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
II |
NJ1 |
| 4 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
