Communication Interface Module Battery Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower compartment. Refer to Instrument Panel Lower Compartment Replacement

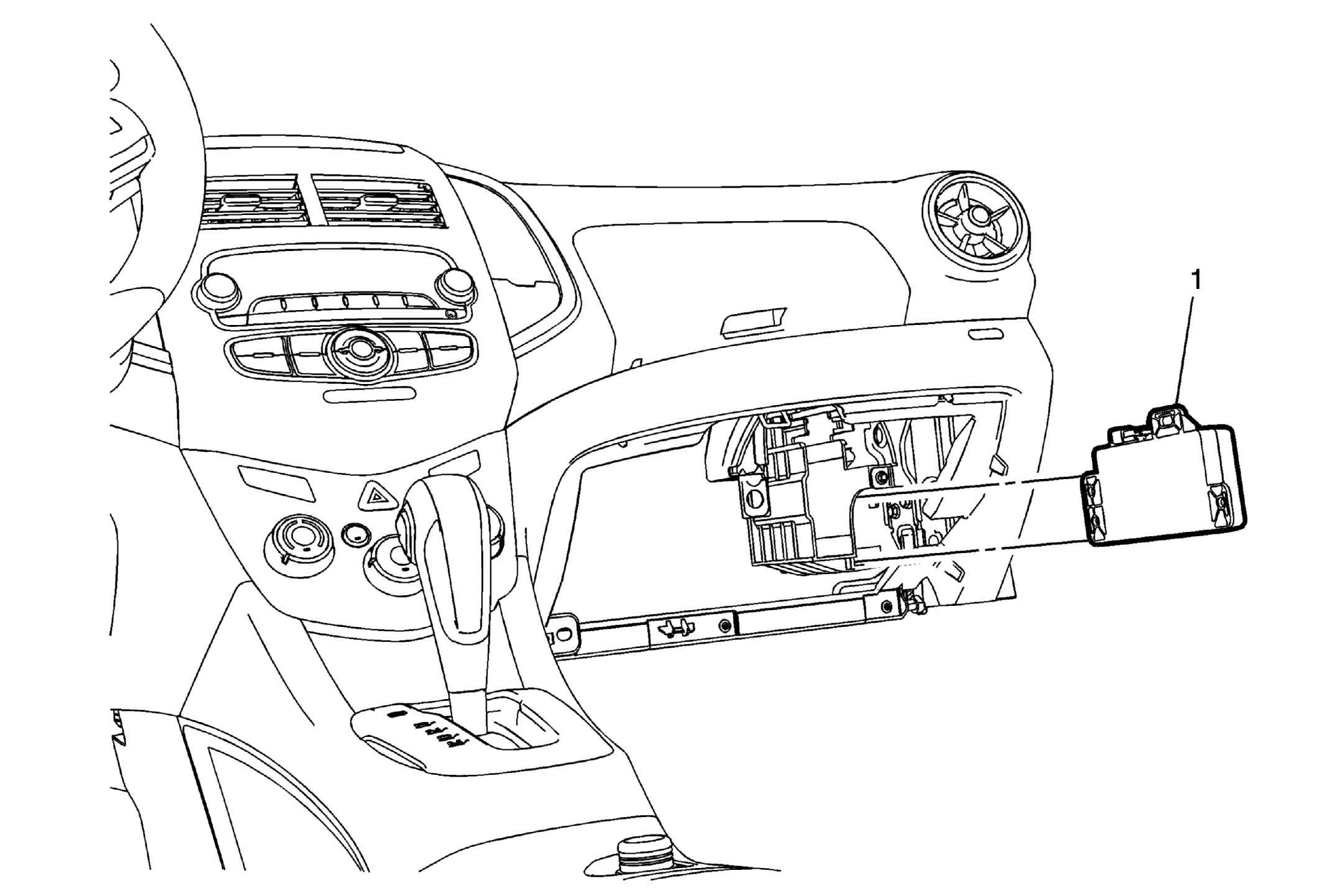

1	Communication Interface Module Battery Procedure Disconnect the electrical connector. Reprogramming of the module may be necessary after losing battery power. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower compartment. Refer to Instrument Panel Lower Compartment Replacement

Communication Interface Module Battery

Procedure

Disconnect the electrical connector.
Reprogramming of the module may be necessary after losing battery power.
For programming and set up procedures, refer to Control Module References .
