Radio and Telephone Control Switch Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

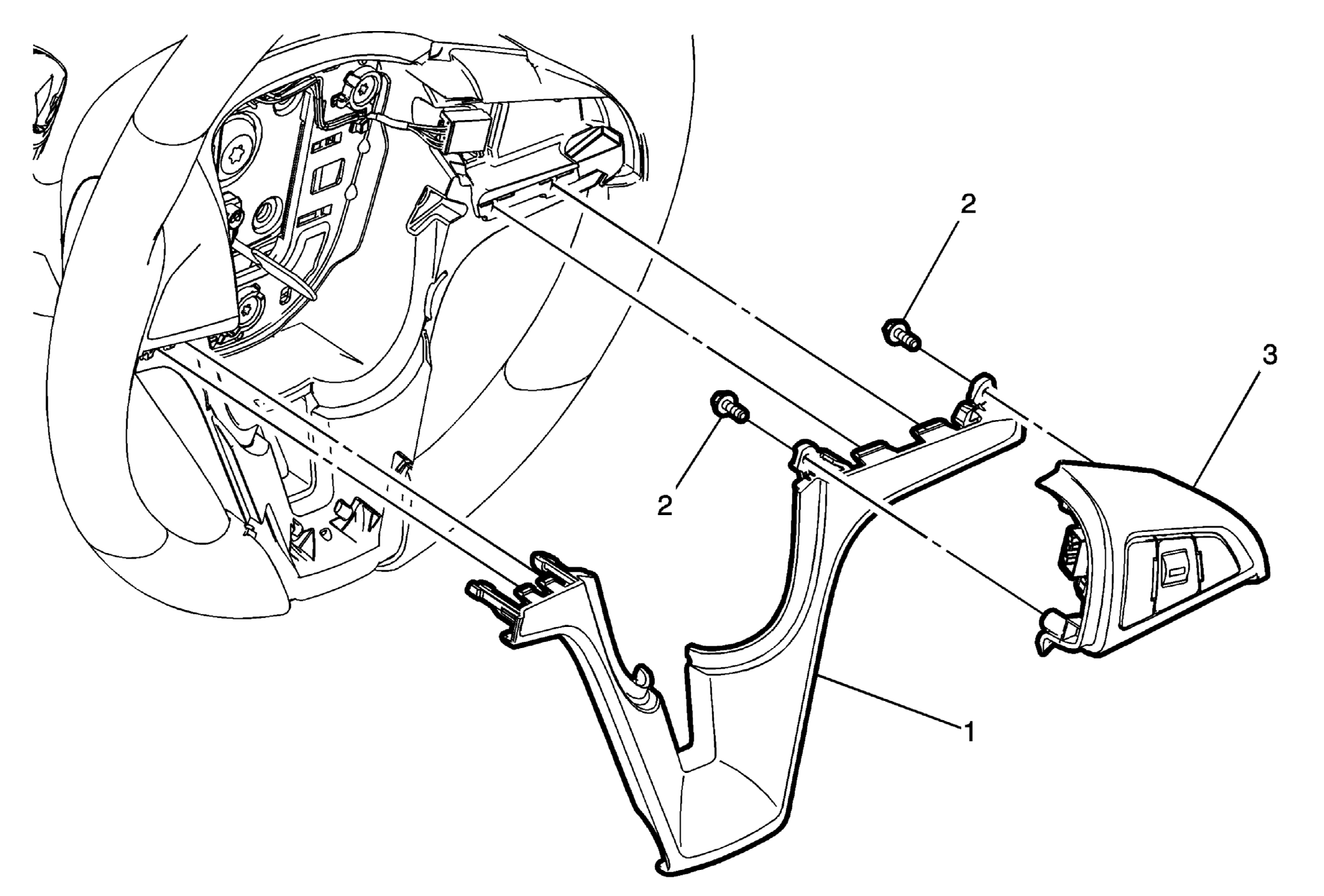

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the sterring wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement . |
|
| 1 | Steering Wheel Lower Cover |
| 2 | Steering Wheel Lower Cover Fastener (Qty: 2) |
| 3 | Radio and Telephone Control Switch Assembly Procedure Disconnect the electrical connector. |
