Section 98 (Cellular System, Entertainment System, And Navigation System)
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Power, Ground, Serial Data, and Subsystem References
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

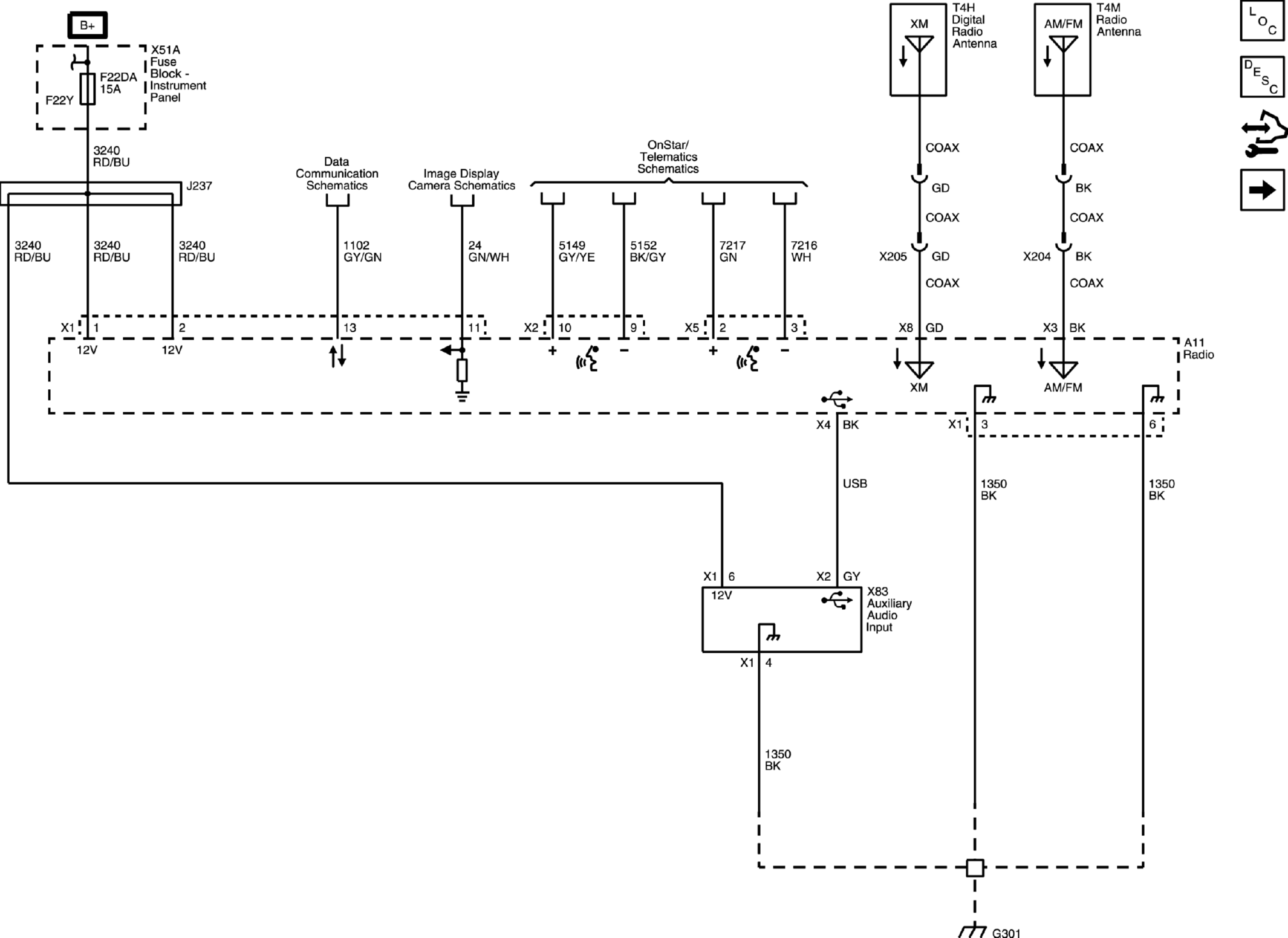

Power, Ground, Serial Data, and Subsystem References
WARNING:
This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
