K9 Body Control Module X4

Courtesy of GENERAL MOTORS COMPANY

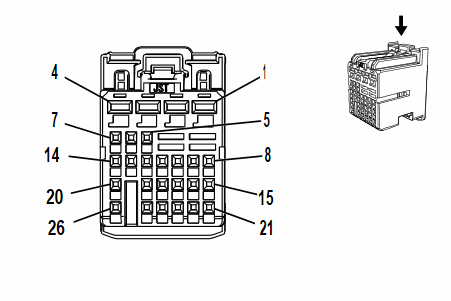

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13582297	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
II	13582298	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
III	13587507	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	E	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	YE	712	Left Headlamp Low Beam Control	III	-
2	0.75	YE	312	Right Headlamp Low Beam Control	III	-
3	0.75	GN/VT	1315	Right Front Turn Signal Lamp Control	III	-
4	0.5	BN/GN	19	Right Rear Stop/Turn Lamp Control	III	-
5	0.75	WH/YE	7541	Right Rear Stop Lamp Control	II	-
6	0.75	GY/YE	7542	Left Rear Stop Lamp Control	II	-
7	0.75	GY/BU	7538	Left Front DRL Control	II	-
8	0.35	GY/YE	6188	Lift Glass/Rear Compartment Lid Motor Release Control	I	-
9 - 10	-	-	-	Not Occupied	-	-
11	0.5	VT/WH	5065	Stop Lamp Relay Coil Control	I	-
12	0.35	GY/VT	755	RAP Relay Coil Control	I	-
13	0.5	GN/YE	6846	Rear License Lamp Control	I	-
14	0.35	BN/GY	2268	Windshield Washer Relay Control	I	-
15	0.35	GN/VT	5199	Run/Crank Relay Coil Control	I	-
16	0.35	GY	91	Windshield Wiper Motor Relay Coil Control	I	-
17	0.5	BN/GN	196	Windshield Wiper Motor Park Switch Signal	I	-
18	0.35	WH/YE	5075	Current Sensor Signal	I	-
19	0.35	BU/YE	6844	ABS/TCS Hill Descent Control Switch Signal	I	-
20	0.75	RD/YE	2340	Battery Positive Voltage	II	-
21	0.35	BU/VT	5076	Current Sensor Control	I	-
22	0.35	VT/YE	5985	Accessory Wakeup Serial Data	I	-
23	0.5	WH/BU	5986	Serial Data Communication Enable	I	-
24	0.5	BN/GN	109	Hood Ajar Switch Signal	I	-
25	0.35	YE/BU	4086	Pushbutton Start Challenge Active Signal	I	-
26	0.75	BK/WH	451	Signal Ground	II	-
