K9 Body Control Module X6

Courtesy of GENERAL MOTORS COMPANY

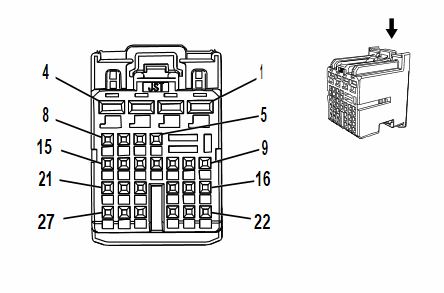

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575789	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	C	A
II	13582297	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
III	Not Required	J-35616-64B (LT BU)	No Tool Required	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1.5	BU/WH	195	Door Lock Control	I	-
2	1.5	GY/GN	3271	Door Lock Control 2	I	-
3	1.5	BK	1850	Ground	I	-
4	1.5	BN/YE	294	Door Lock Actuator Unlock Control	I	-
5	0.35	VT/GY	1303	Lift Gate Ajar Switch Signal 1	II	-
6	0.5	WH/BU	3203	Right Headlamp Bulb Outage Signal	II	-
7	0.5	YE/WH	58	Right Cornering Lamp Control	II	-
8	0.35	VT/WH	5908	Passenger Seat Vent Motor Control 1	II	-
9	0.5	GN/BU	6133	Local Interconnect Network Serial Data Bus 2	II	-
10	0.5	GN/YE	6134	Local Interconnect Network Serial Data Bus 3	II	-
11	-	-	-	Not Occupied	-	-
12	0.5	YE/BK	5356	Left Tail Lamp Outage Detection Signal	II	-
13	0.5	VT/BU	7598	Glass Breakage Sensor Signal 2	III	-
14	-	-	-	Not Occupied	-	-
15	0.35	GY/GN	6190	Lift Glass/Rear Compartment Lid Exterior Release Signal	II	-
16	0.5	GN/BN	6132	Local Interconnect Network Serial Data Bus 1	II	-
17	0.35	GN/VT	5906	Driver Seat Vent Motor Control 1	II	-
18 - 20	-	-	-	Not Occupied	-	-
21	0.5	BU/VT	3204	Left Headlamp Bulb Outage Signal	II	-
22	0.5	VT/YE	5357	Right Tail Lamp Outage Detection Signal	II	-
23	-	-	-	Not Occupied	-	-
24	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	II	-
25	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	II	-
26	-	-	-	Not Occupied	-	-
27	0.35	WH/VT	2092	Fuel Saver Mode (ECO) Switch Signal	II	-
