Installation Procedure

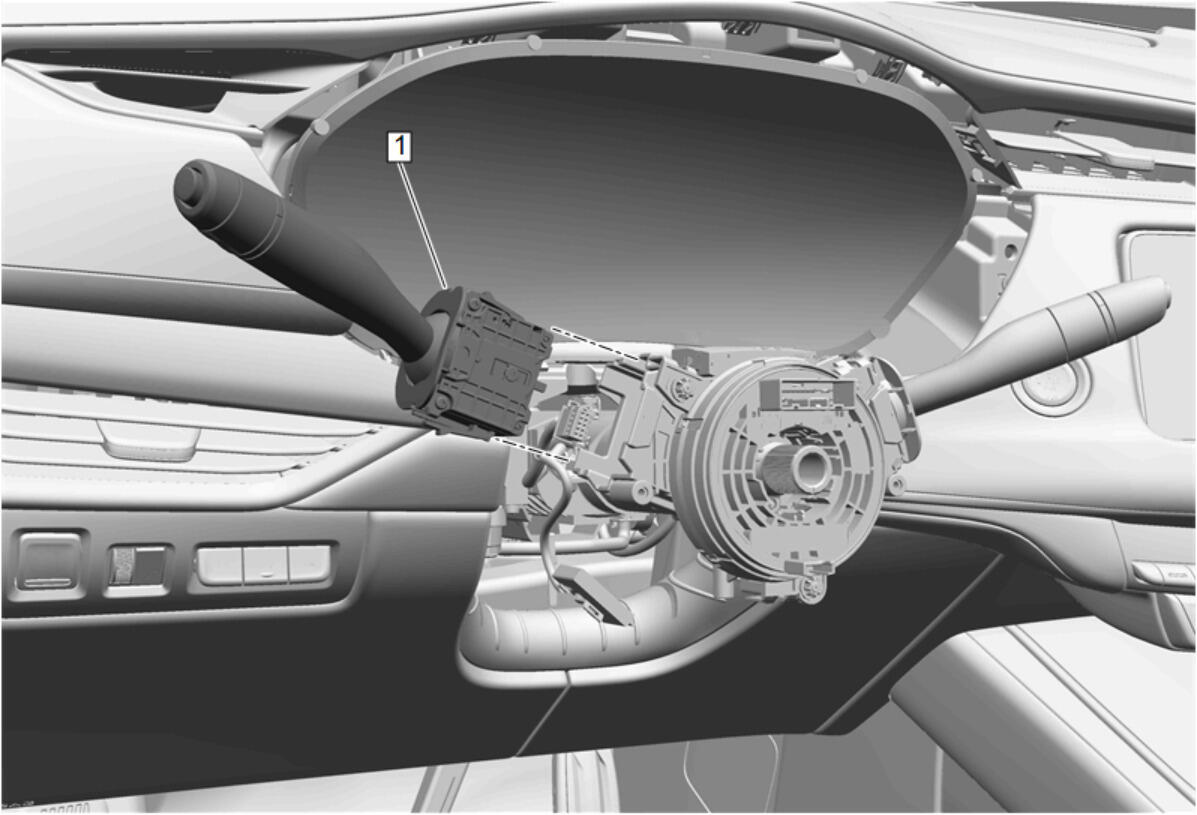

  1. Turn Signal Switch (1) - Install
    GM5042451Courtesy of GENERAL MOTORS COMPANY
  2. Connect the electrical connector.
  3. Steering Column Lower Trim Cover - Install - Steering Column Lower Trim Cover Replacement (N38) , or Steering Column Lower Trim Cover Replacement (N37)
  4. Steering Column Upper Trim Cover - Install - Steering Column Upper Trim Cover Replacement
  5. GM5034996Courtesy of GENERAL MOTORS COMPANY

    Install the steering wheel. (1) Steering Wheel Replacement
