Installation Procedure

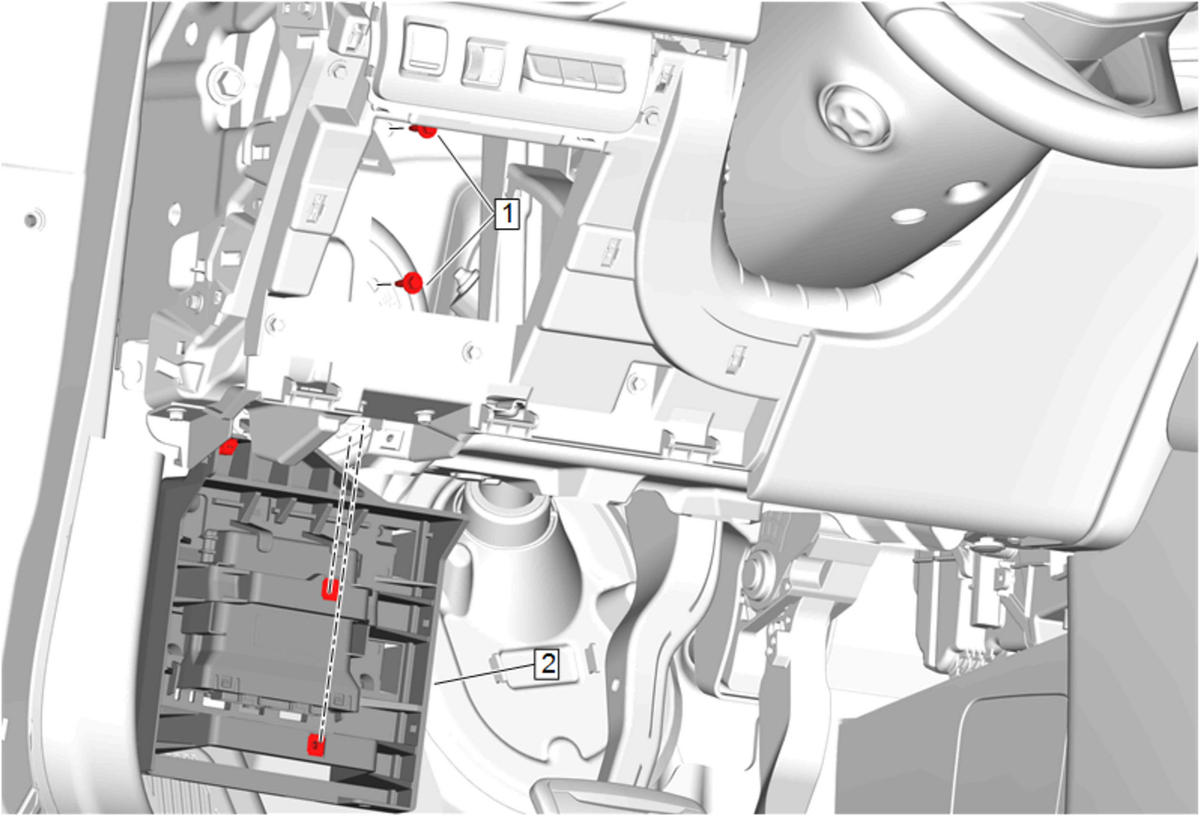

  1. Communication Interface Module Bracket (2) - Install
    GM5081942Courtesy of GENERAL MOTORS COMPANY
  2. Attach the wiring harness and connect the electrical connectors as necessary.
    3. CAUTION:

    Fastener Caution

  3. Communication Interface Module Bracket Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

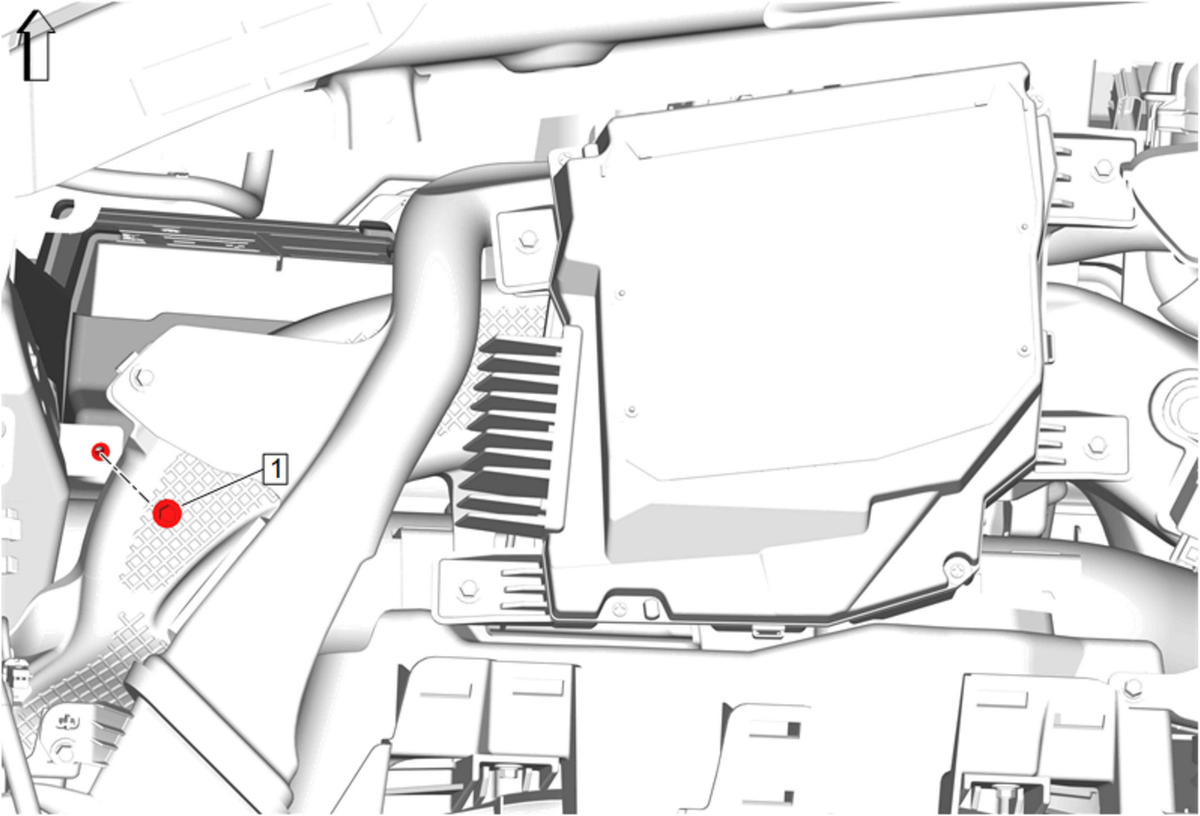

  4. Communication Interface Module Bracket Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
    GM5081940Courtesy of GENERAL MOTORS COMPANY

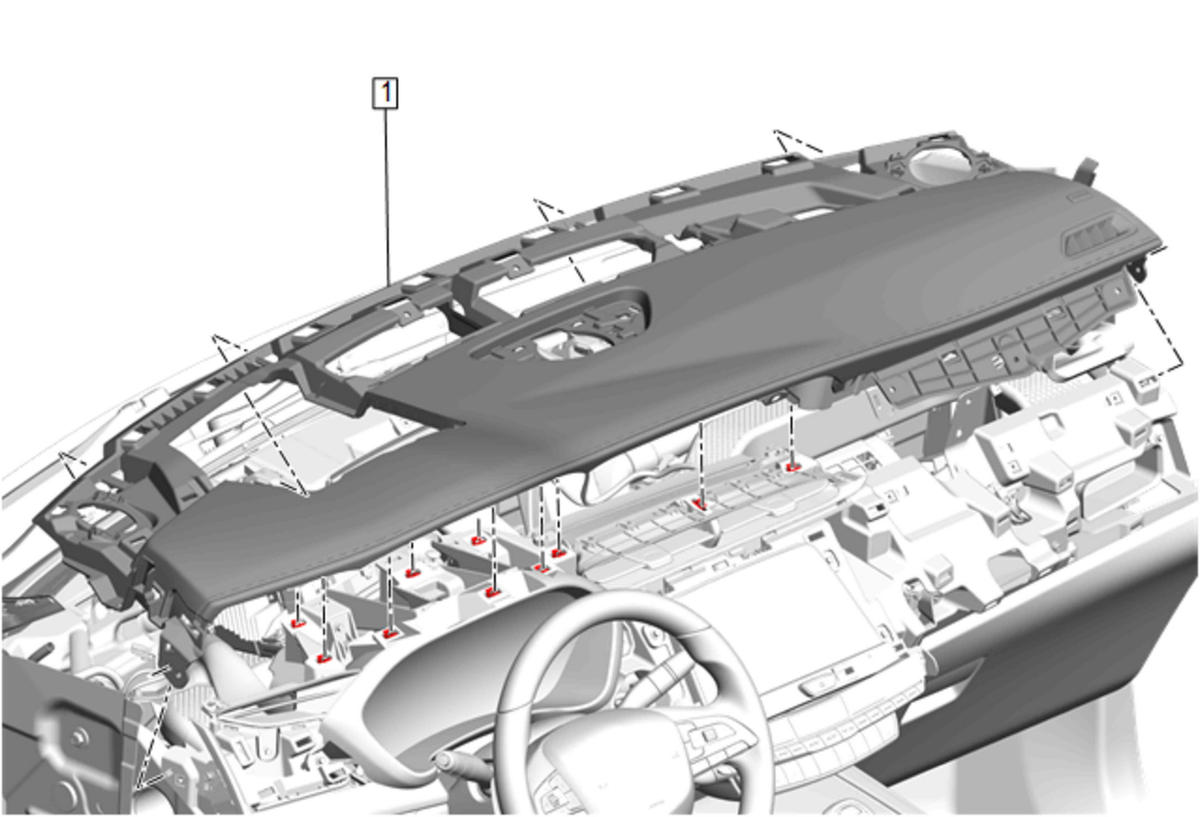

  5. Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement
    GM5082252Courtesy of GENERAL MOTORS COMPANY

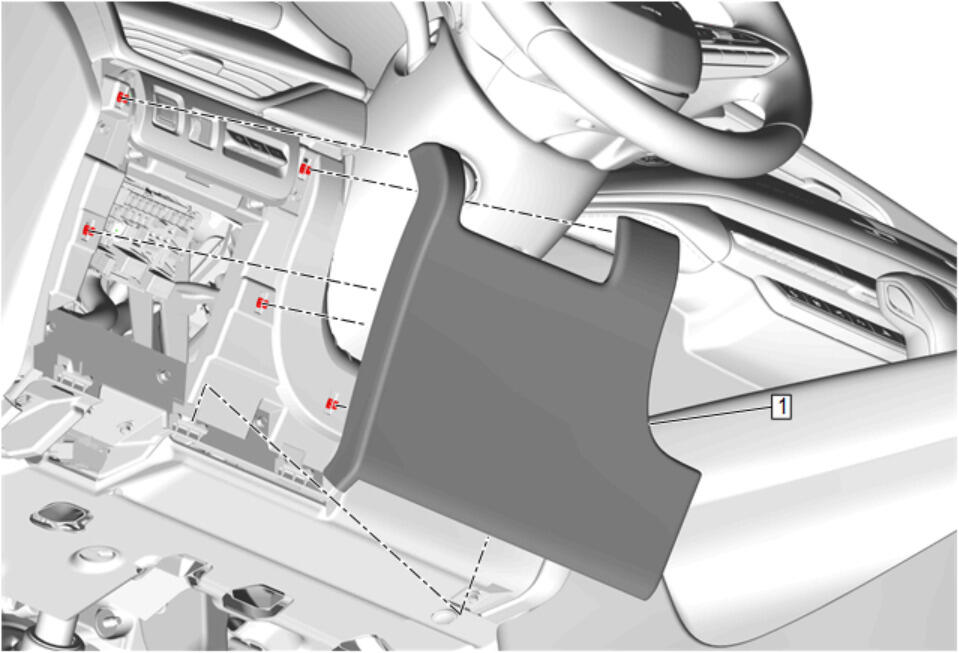

  6. Instrument Panel Fuse Block Access Hole Cover (1) - Install - Instrument Panel Fuse Block Access Hole Cover Replacement
    GM5068385Courtesy of GENERAL MOTORS COMPANY

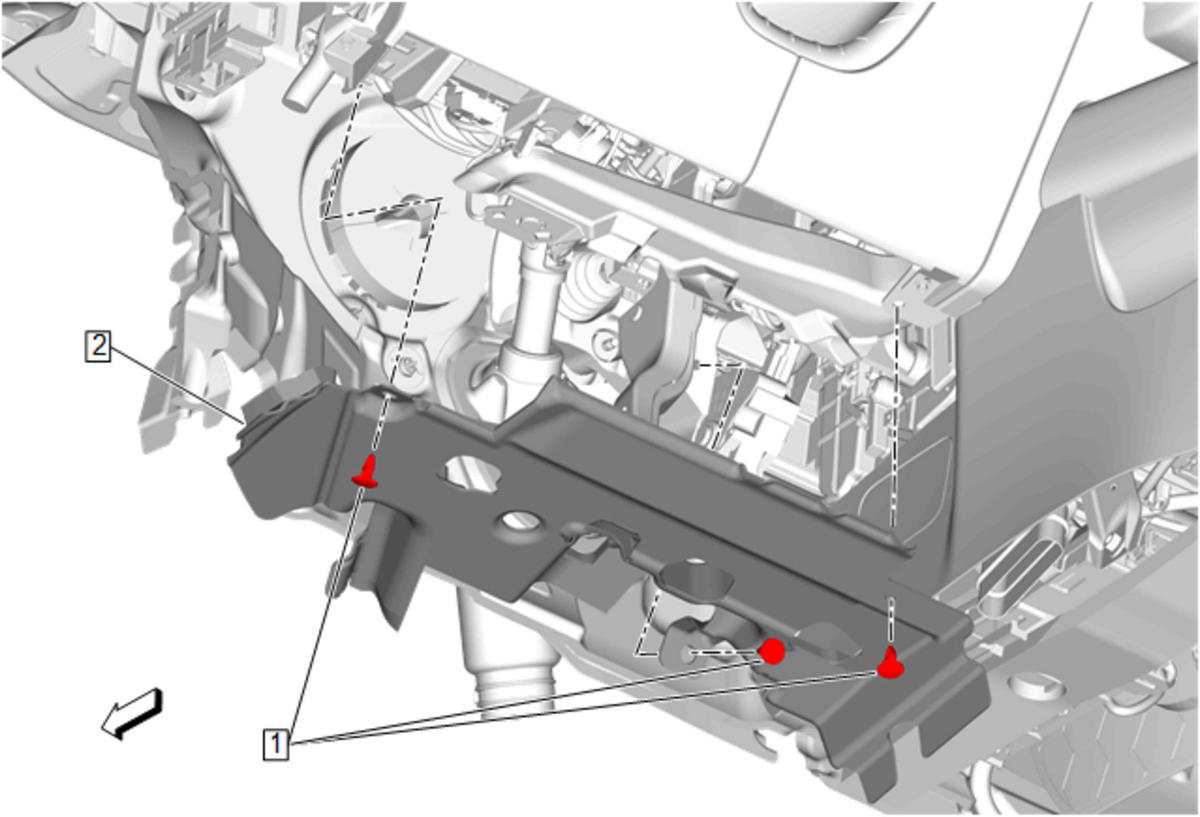

  7. Instrument Panel Lower Trim Panel Insulator-Left Side (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
    GM5077064Courtesy of GENERAL MOTORS COMPANY
