Behind the Instrument Panel

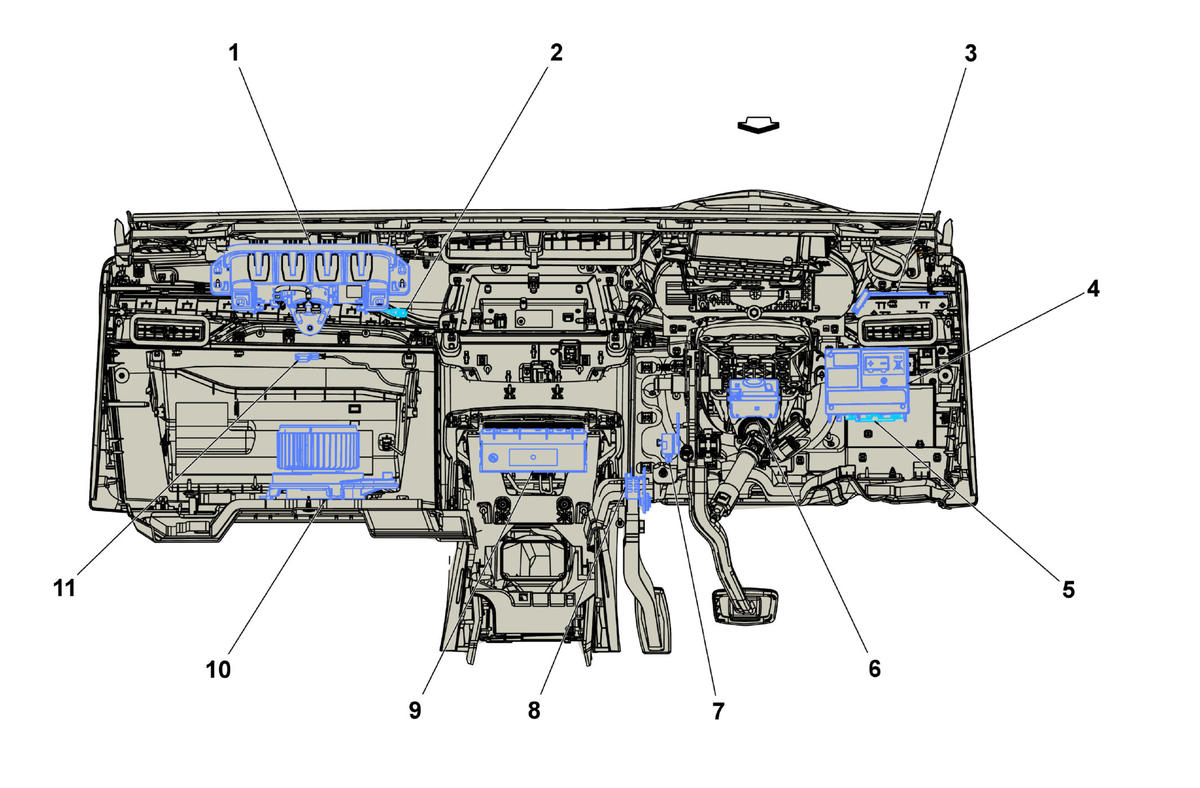

Fig 1: Behind Instrument Panel Component Location
GM4994526Courtesy of GENERAL MOTORS COMPANY
Items
1. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 , or F101 Passenger Instrument Panel Air Bag X2
2. E1H Accent Lamp - Right Instrument Panel (TSQ) E1H Accent Lamp - Right Instrument Panel
3. E1G Accent Lamp - Left Instrument Panel (TSQ) E1G Accent Lamp - Left Instrument Panel (TSQ)
4. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1) , or K73 Telematics Communication Interface Control Module X5 (UE1) , or K73 Telematics Communication Interface Control Module X7 (UE1)
5. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2
6. K60 Steering Column Lock Module (N06) K60 Steering Column Lock Module (N06)
7. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
8. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
9. K33 HVAC Control Module K33 HVAC Control Module X1 , or K33 HVAC Control Module X2 , or K33 HVAC Control Module X3 , or K33 HVAC Control Module X4
10. M8 Blower Motor M8 Blower Motor
11. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
