Right Side of the Center Console

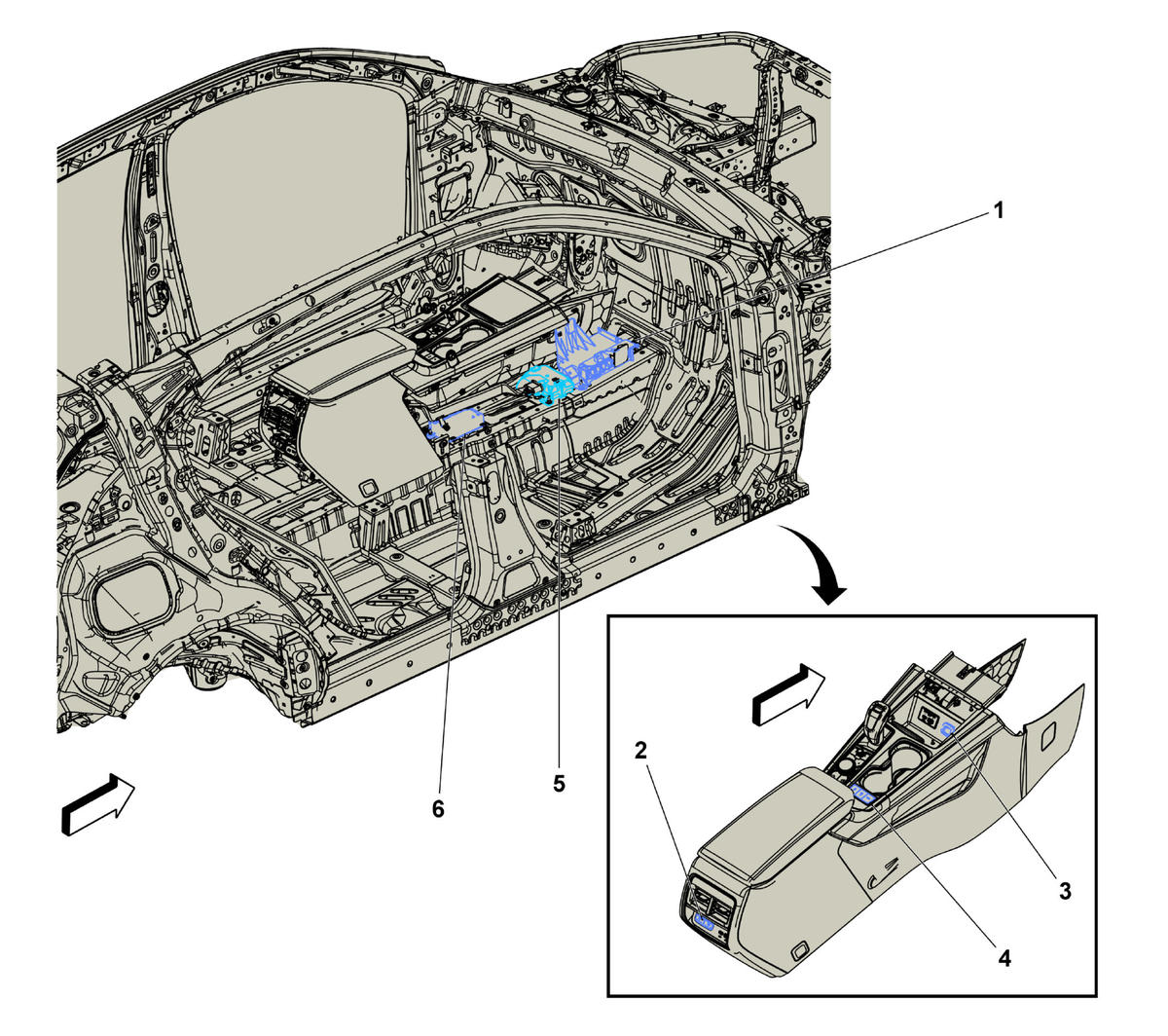

Fig 1: Right Side of Center Console Component Location

Courtesy of GENERAL MOTORS COMPANY

Items
1. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7
2. S32 Seat Heating Switch (KA6) S32 Seat Heating Switch
3. E32 Cigarette Lighter Receptacle (DT4) E32 Cigarette Lighter Receptacle (DT4)
4. S126 Drive Mode Select Switch S126 Drive Mode Select Switch
5. T19 Power Supply Transformer T19 Power Supply Transformer
6. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2
