Top of the Instrument Panel and Steering Column

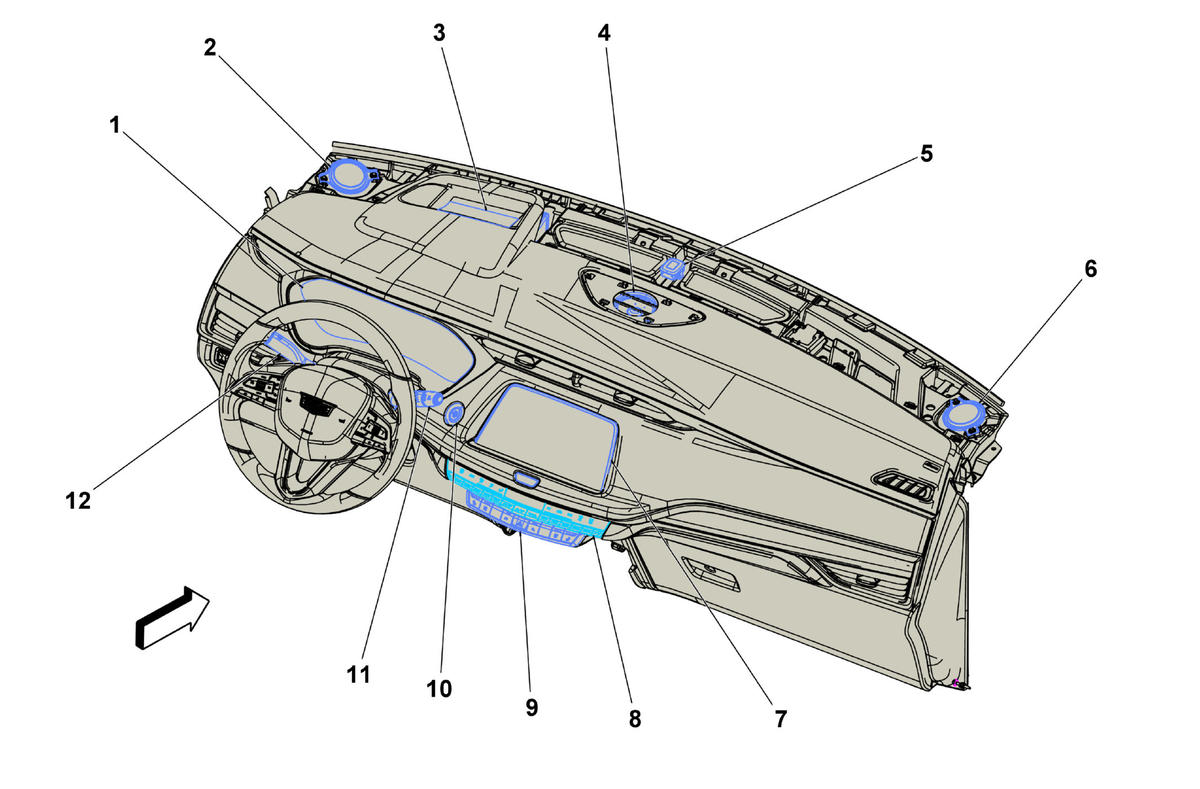

Fig 1: Top of Instrument Panel and Steering Column Component Location

Courtesy of GENERAL MOTORS COMPANY

Items
1. P16 Instrument Cluster P16 Instrument Cluster X1 , or P16 Instrument Cluster X2
2. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQG) , or P19J Speaker - Left Instrument Panel (UQS)
3. P29 Head-Up Display (UV6) P29 Head-Up Display X1 (UV6) , or P29 Head-Up Display X2 (UV6)
4. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel (UQG) , or P19B Speaker - Center Instrument Panel (UQS)
5. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor (T83)
6. P19V Speaker - Right Front Tweeter (UQS) P19V Speaker - Right Front Tweeter (UQS)
7. P17 Info Display Module P17 Info Display Module X1 , or P17 Info Display Module X2
8. A26 HVAC Controls A26 HVAC Controls
9. S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel
10. S38 Ignition Mode Switch S38 Ignition Mode Switch
11. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
12. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
