Underneath the Instrument Panel and the Center Console

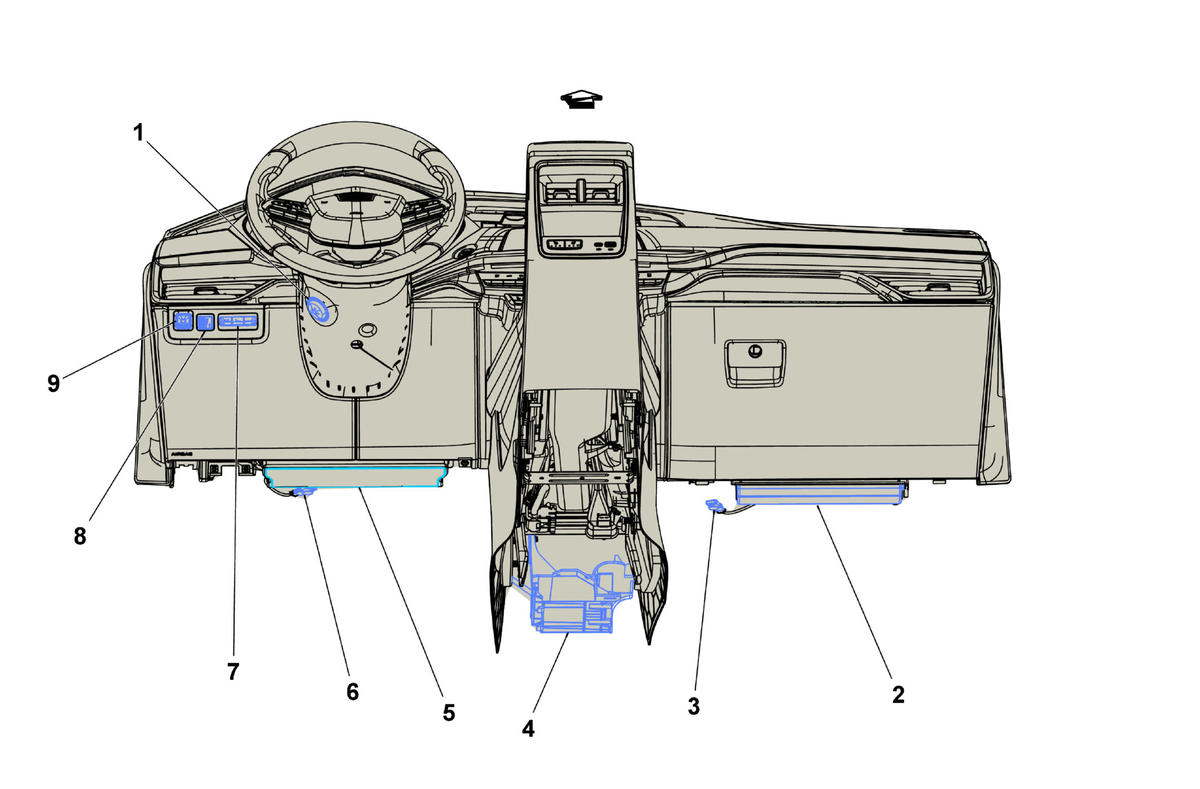

Fig 1: Underneath Instrument Panel and Center Console Component Location

Courtesy of GENERAL MOTORS COMPANY

Items
1. S71 Steering Column Tilt and Telescope Switch (N38) S71 Steering Column Tilt and Telescope Switch
2. F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger
3. E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right
4. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7
5. F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
6. E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left
7. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch (UV6)
8. S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch
9. B80 Park Brake Switch B80 Park Brake Switch
