Installation Procedure

Steering Column (1) - Install

Courtesy of GENERAL MOTORS COMPANY
Steering Column Nut (1) - Install and hand tighten [4x]

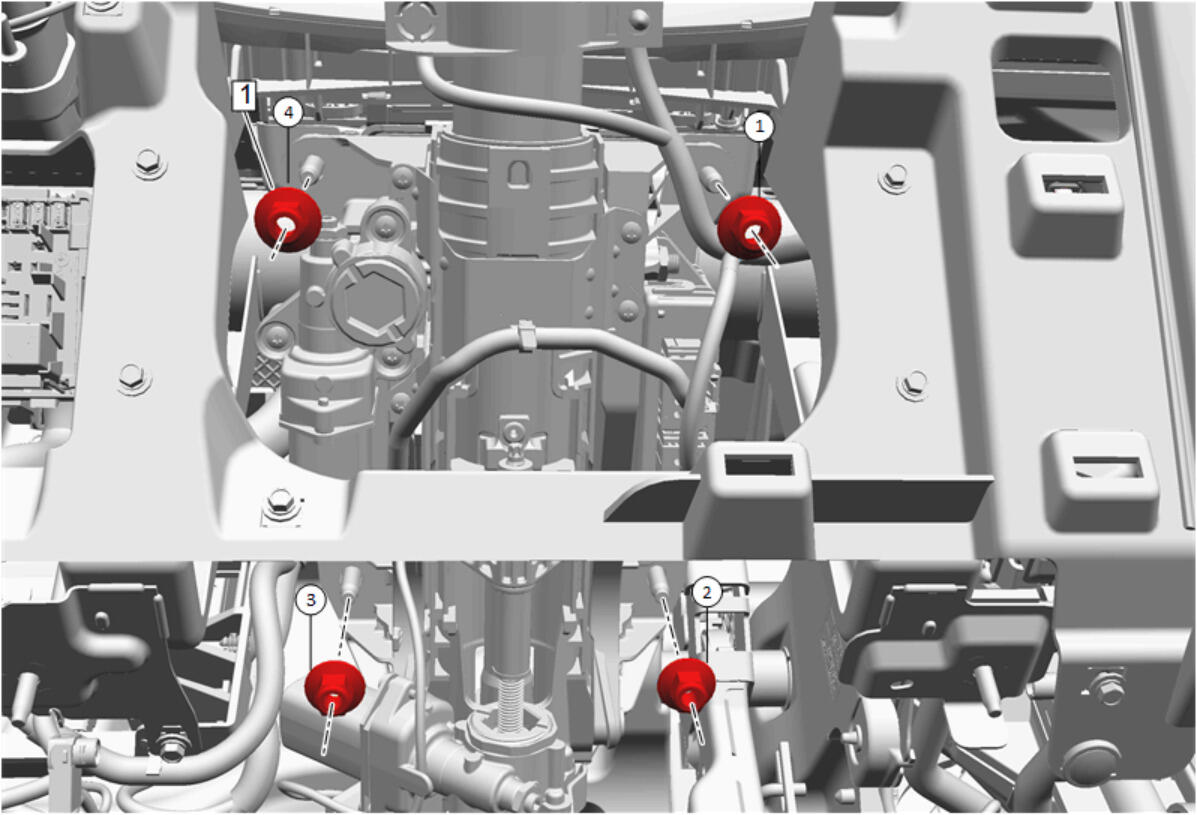

Fig 1: Steering Column Nuts With Tightening sequence
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Support the steering column while installing the steering column nuts.

CAUTION:

Fastener Caution .

Steering Column Nut (1) - Tighten in sequence [4x] 22 N.m (16 lb ft)
Connect the steering column electrical connectors.
Align the relationship marks made between the steering column and the upper intermediate steering shaft (1) during removal.

Courtesy of GENERAL MOTORS COMPANY
Upper Intermediate Steering Shaft @ Steering Column - Install - Upper Intermediate Steering Shaft Replacement
Floor Front Air Outlet Duct - Left Side (2) - Install - Floor Front Air Outlet Duct Replacement - Left Side

Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Lower Trim Panel Insulator - Left Side - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Steering Column Lower Trim Cover (1) - Install - Steering Column Lower Trim Cover Replacement (N38) , or Steering Column Lower Trim Cover Replacement (N37)

Courtesy of GENERAL MOTORS COMPANY
Remove the CH-42640 Steering Column Anti-Rotation Pin (1) from the steering column lower access hole.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
The anti-rotation pin must be removed from the steering column before installing the steering wheel. Ensure that the steering wheel bolt is torqued to specification during steering wheel installation. Over torquing the steering wheel bolt can result in damage to the steering column rivets which will disable the telescoping mechanism. If the steering column rivets are damaged, a new steering column must be installed.
Steering Wheel (1) - Install - Steering Wheel Replacement

Courtesy of GENERAL MOTORS COMPANY
Enable the SIR System. SIR Disabling and Enabling
Perform functionality check of tilt and telescoping features.
