Power Transfer Unit Input Shaft and Idler Shaft Assembly Installation

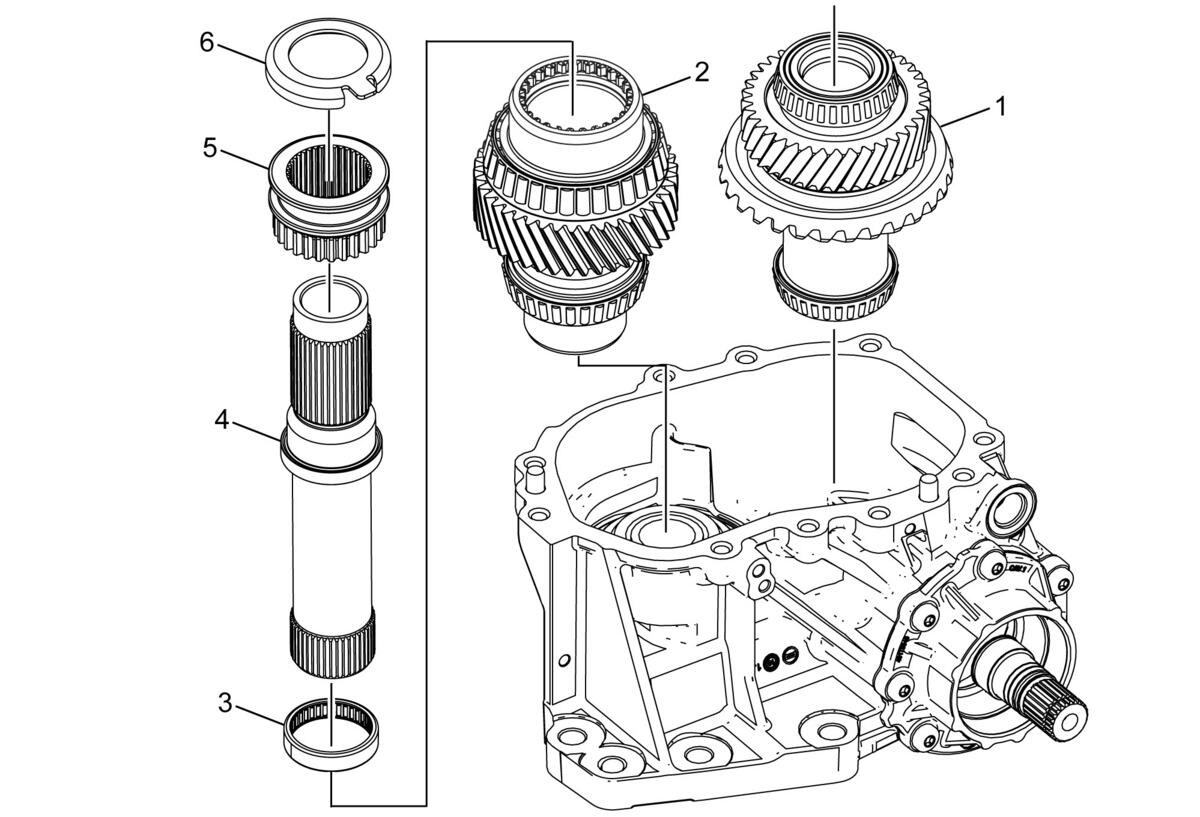

Fig 1: Exploded View of Power Transfer Unit Input Shaft and Idler Shaft Assembly

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Power Transfer Unit Idler Shaft
2	Power Transfer Unit Input Shaft
3	Power Transfer Unit Pinion Compression Sleeve
4	Power Transfer Unit Shift Actuator Shaft
5	Power Transfer Unit Shift Actuator Gear
6	Power Transfer Unit Shift Actuator Locker
