Power Transfer Unit Propeller Shaft Seal, O-ring and Retainer Installation

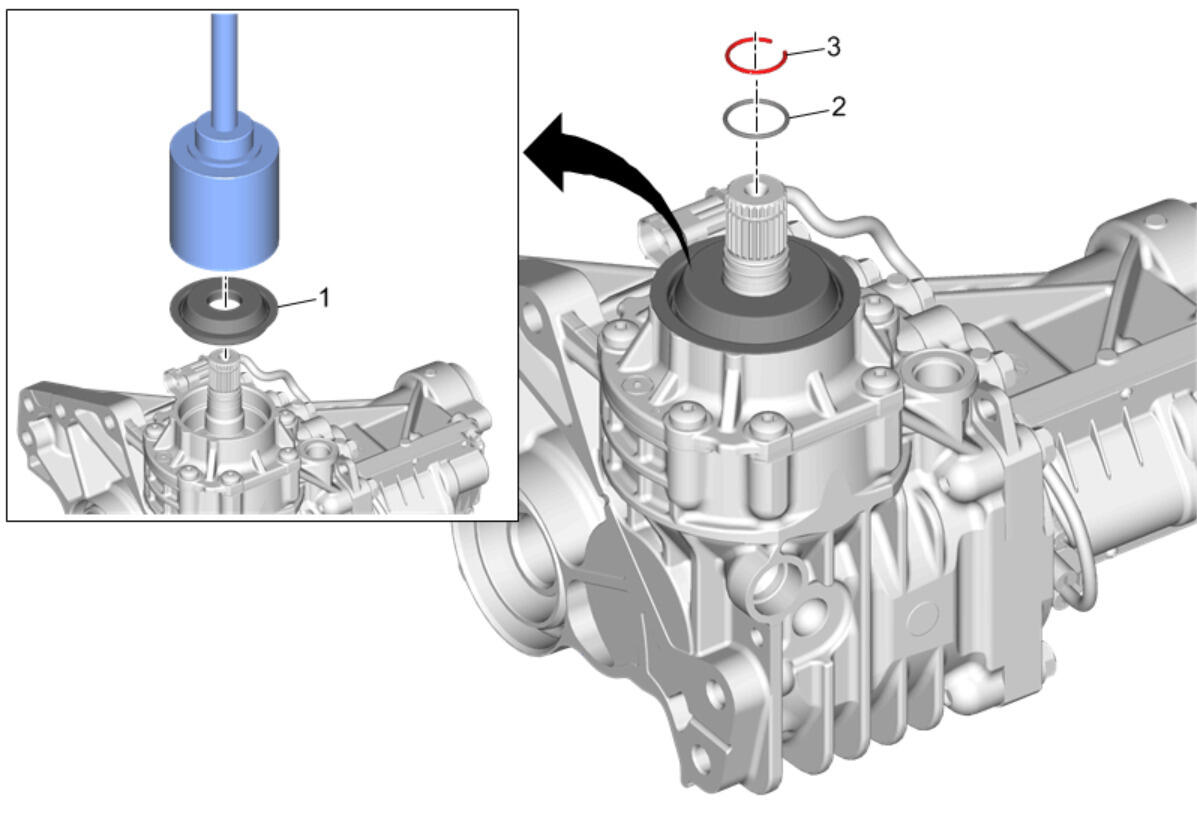

Fig 1: Power Transfer Unit Propeller Shaft Seal, O-Ring and Retainer Components Location

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts in the following chart represent components shown in graphic above.

Power Transfer Unit Propeller Shaft Seal, O-Ring and Retainer Installation

Callout	Component Name
1	Power Transfer Unit Propeller Shaft Seal Procedure Make sure the seal bore is clean and free of oil or dirt. Install a NEW seal. Special Tools DT-51467 - A Seal Installer DT-305 - 1 Driver Handle Equivalent regional tools: Special Tools
2	Power Transfer Unit Propeller Shaft Seal O-Ring Procedure Install a NEW seal.
3	Power Transfer Unit Propeller Shaft Retainer Procedure Install a NEW retainer. When installing a NEW half shaft retaining clip, open the clip only as far as necessary to fit the clip over the shaft. Opening the clip too far will damage it. Start one end of the clip in the shaft groove and slowly push the clip onto and over the shaft.

Callout

Component Name

Power Transfer Unit Propeller Shaft Seal

Procedure

Special Tools

Equivalent regional tools: Special Tools

Power Transfer Unit Propeller Shaft Seal O-Ring
Procedure
Install a NEW seal.

Power Transfer Unit Propeller Shaft Retainer

Procedure

Install a NEW retainer.
When installing a NEW half shaft retaining clip, open the clip only as far as necessary to fit the clip over the shaft. Opening the clip too far will damage it.
Start one end of the clip in the shaft groove and slowly push the clip onto and over the shaft.
