Power Transfer Unit Case Holding Fixture Installation

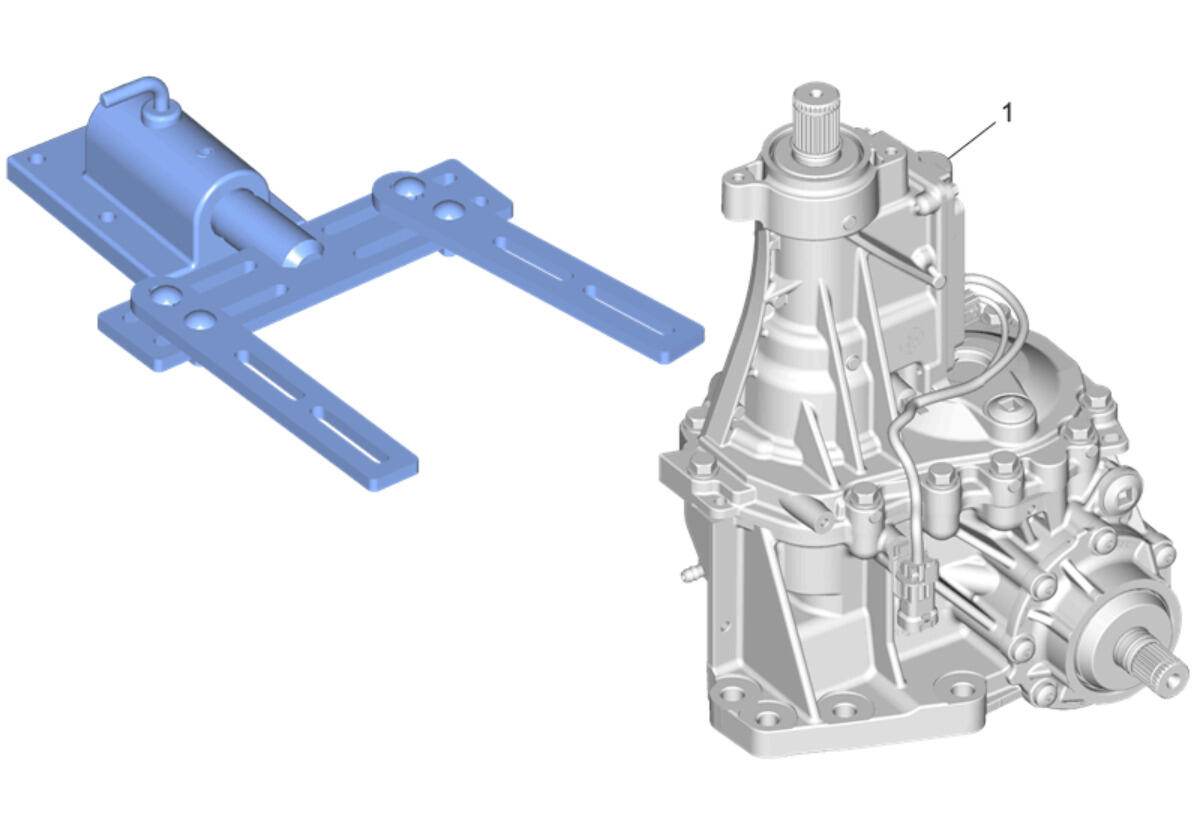

GM4893543Courtesy of GENERAL MOTORS COMPANY
Power Transfer Unit Case Holding Fixture Installation

Callout Component Name
1 Power Transfer Unit Case
NOTE:
  • Always secure with the pivot pin after rotating.
  • The power transfer unit can be rotated 360 degrees to facilitate repair.

Special Tools

  • DT-3289-20  Holding Fixture
  • DT-36842  Transaxle Holding Fixture

Equivalent regional tools: Special Tools
