Power Transfer Unit Intermediate Drive Shaft Components Removal
NOTE:

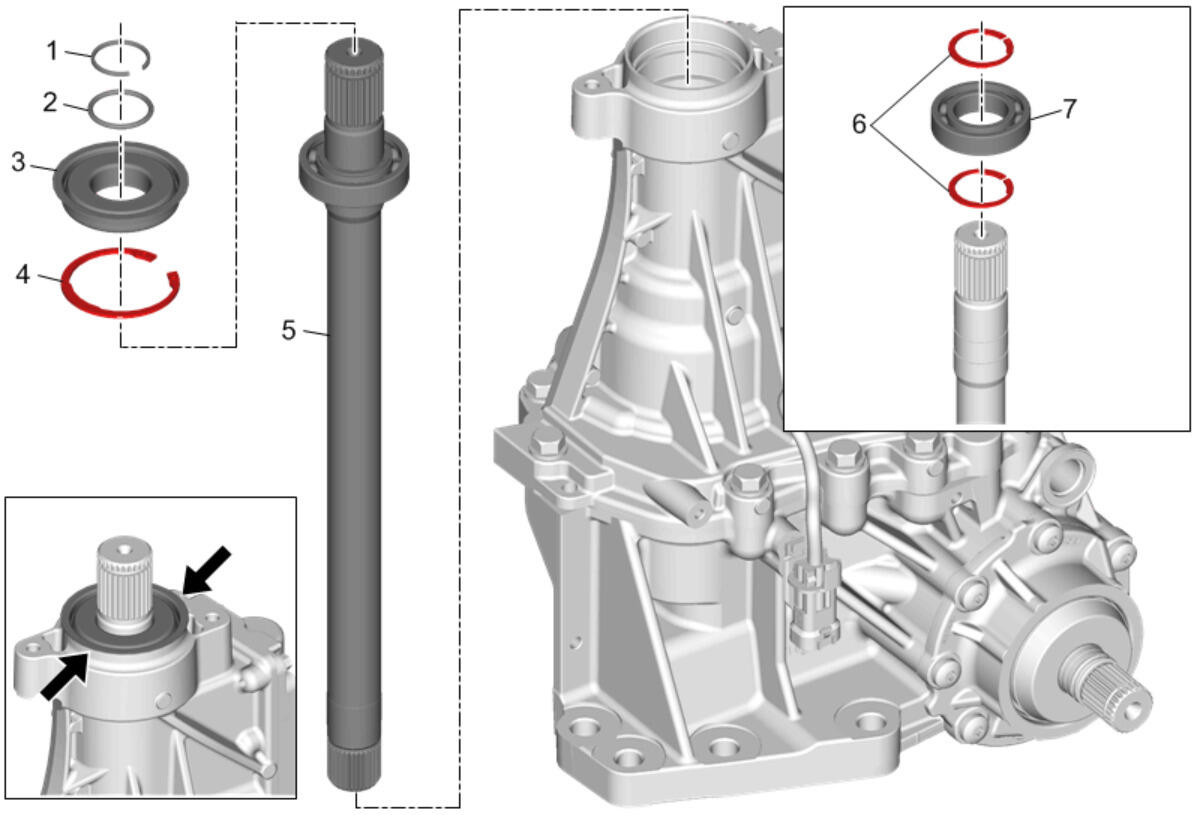

Callouts in the following chart represent components shown in graphic above.
Power Transfer Unit Intermediate Drive Shaft Components Removal
| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Half Shaft Retainer Clip Procedure Remove and DISCARD the retainer. |
| 2 | Power Transfer Unit Half Shaft Seal O-Ring Procedure Remove and DISCARD the O-ring seal. |
| 3 | Power Transfer Unit Intermediate Drive Shaft Procedure Push the OD flange of the seal to remove from extension housing and shaft. |
| 4 | Power Transfer Unit Intermediate Drive Shaft Clip |
| 5 | Power Transfer Unit Intermediate Drive Shaft Assembly |
| 6 | Power Transfer Unit Intermediate Drive Shaft Bearing Retaining Ring [2x]
CAUTION:
Do not nick, scratch or damage the sealing surface. The sealing surface is a machined surface. Damage to the machined surface can cause leakage. |
| 7 | Power Transfer Unit Intermediate Drive Shaft Bearing Procedure Use a press to remove the bearing from the power transfer unit intermediate drive shaft. |
