Installation Procedure

  1. Clean the contact surfaces between the power transfer unit and the transmission.

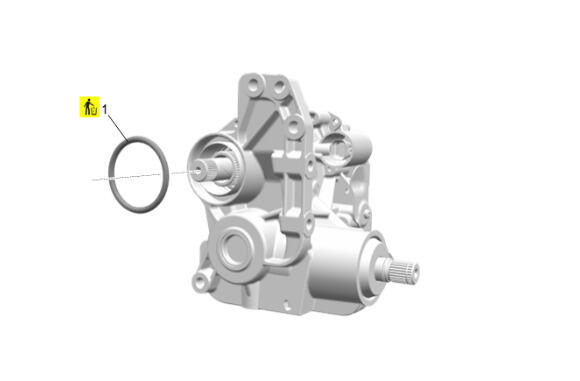

  2. Install a NEW power transfer unit face seal (1).
    GM5063646Courtesy of GENERAL MOTORS COMPANY
  3. Support the power transfer unit with a suitable jack, and secure with suitable straps.
  4. Raise and align the power transfer unit the correct position in relation to the transmission.

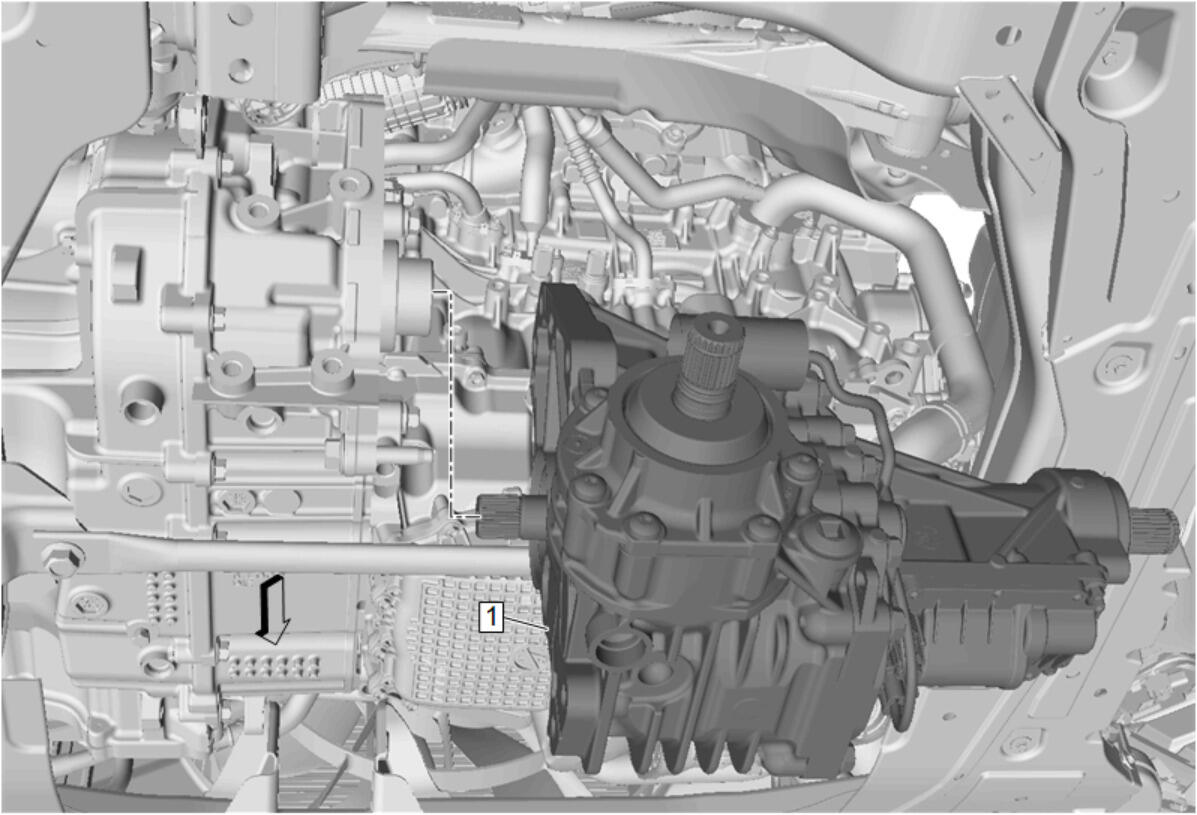

  5. Install the power transfer unit (1) to the transmission.
    GM5064828Courtesy of GENERAL MOTORS COMPANY

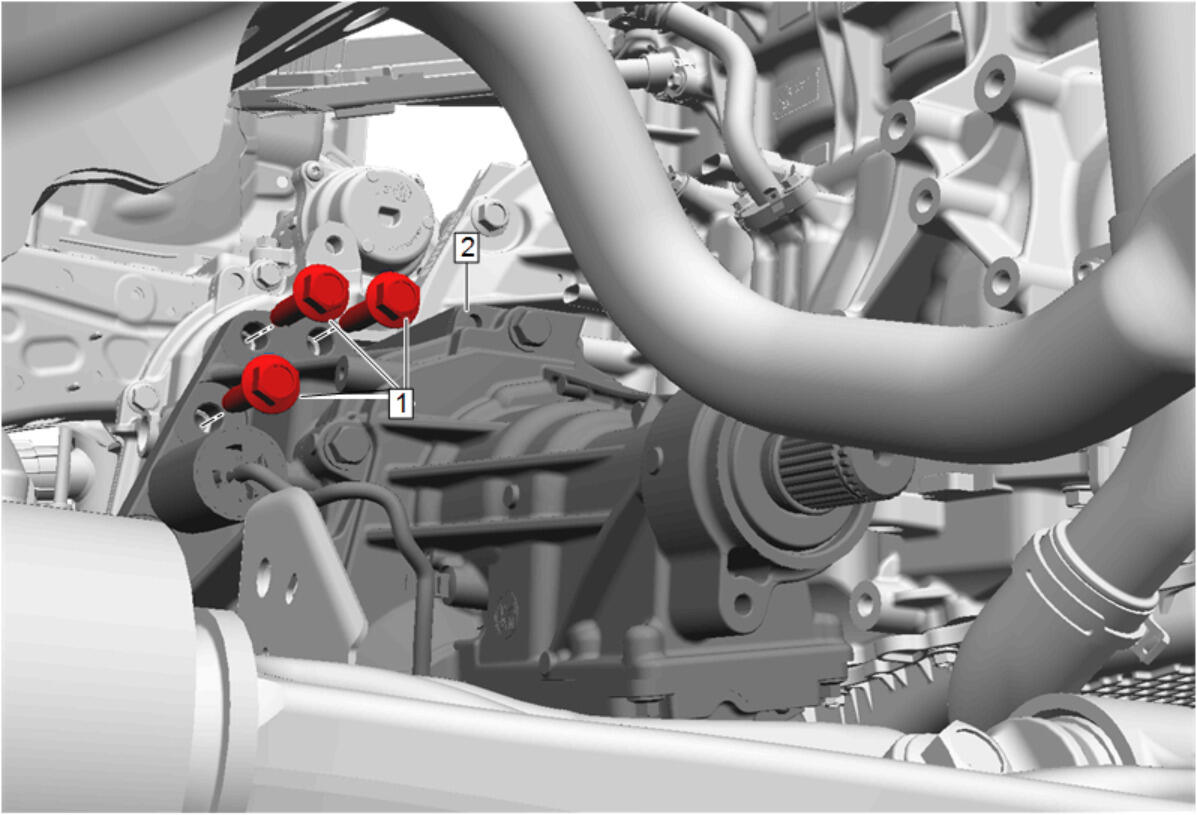

  6. Install the 3 power transfer unit bolts (1) and tighten to 100 N.m (74 lb ft).
    GM5064816Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

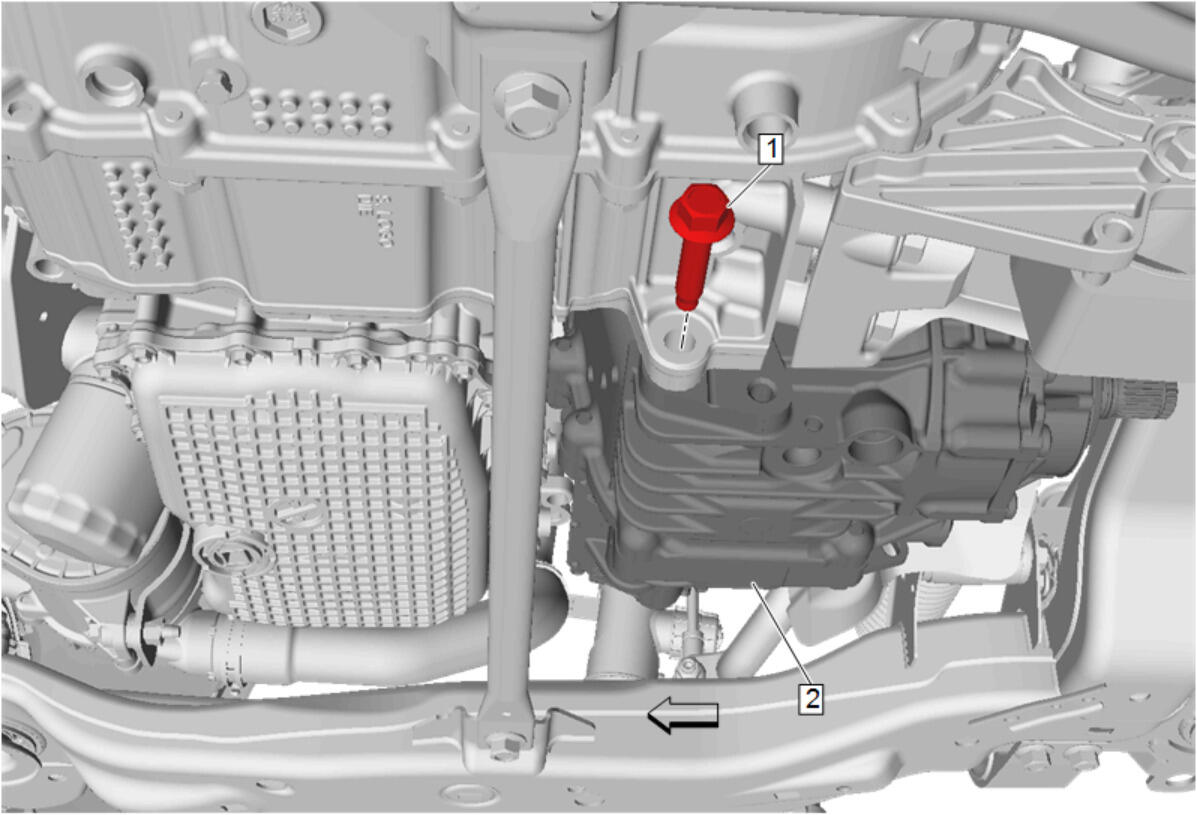

  7. Install the power transfer unit bolt (1) and tighten to 100 N.m (74 lb ft).
    GM5064793Courtesy of GENERAL MOTORS COMPANY

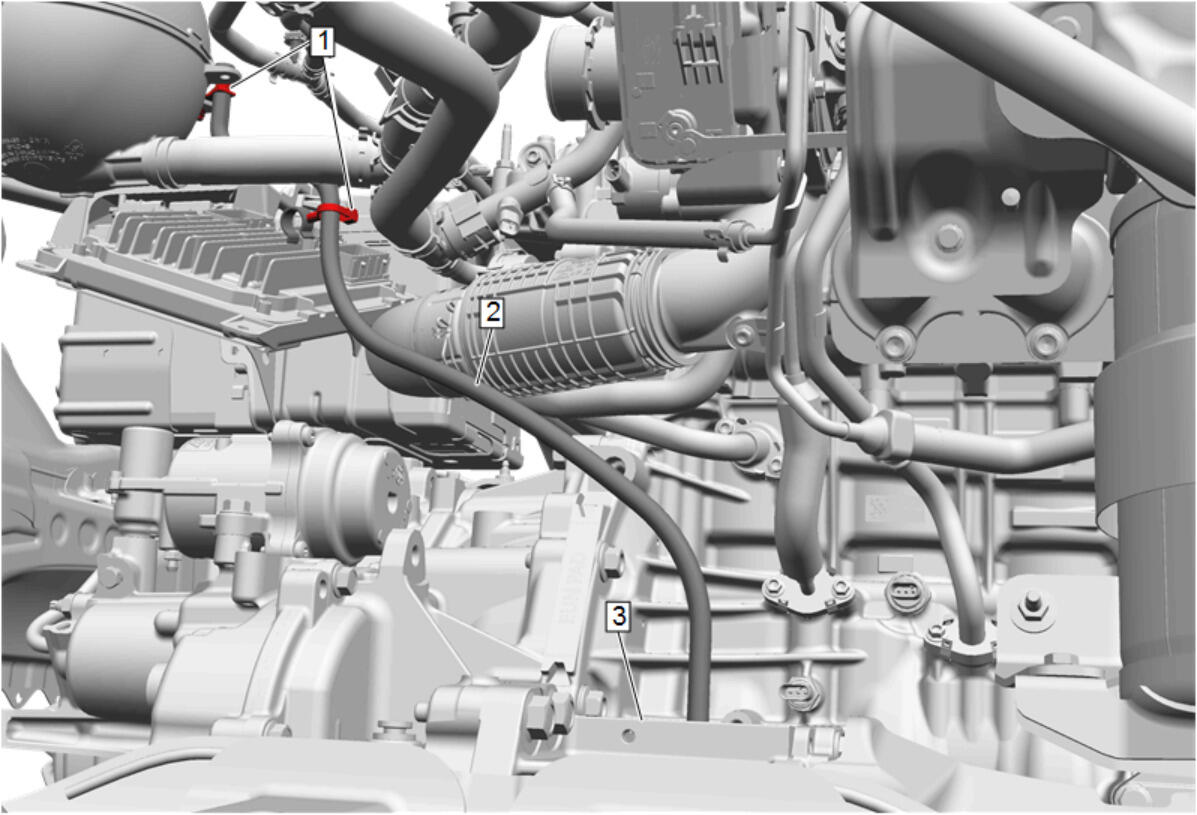

  8. Connect the power transfer unit vent hose (2) to the power transfer unit case (3).
    GM5062726Courtesy of GENERAL MOTORS COMPANY
  9. Install the power transfer unit bracket. Power Transfer Unit Bracket Replacement
  10. Connect all electrical connectors and wiring harness retainers to the power transfer unit.
  11. Install the power transfer unit heat shield. Power Transfer Unit Heat Shield Replacement
  12. Install the front wheel drive intermediate shaft. Front Wheel Drive Intermediate Shaft Replacement
  13. Install the propeller shaft. Propeller Shaft Replacement
