K17 Electronic Brake Control Module (J69)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

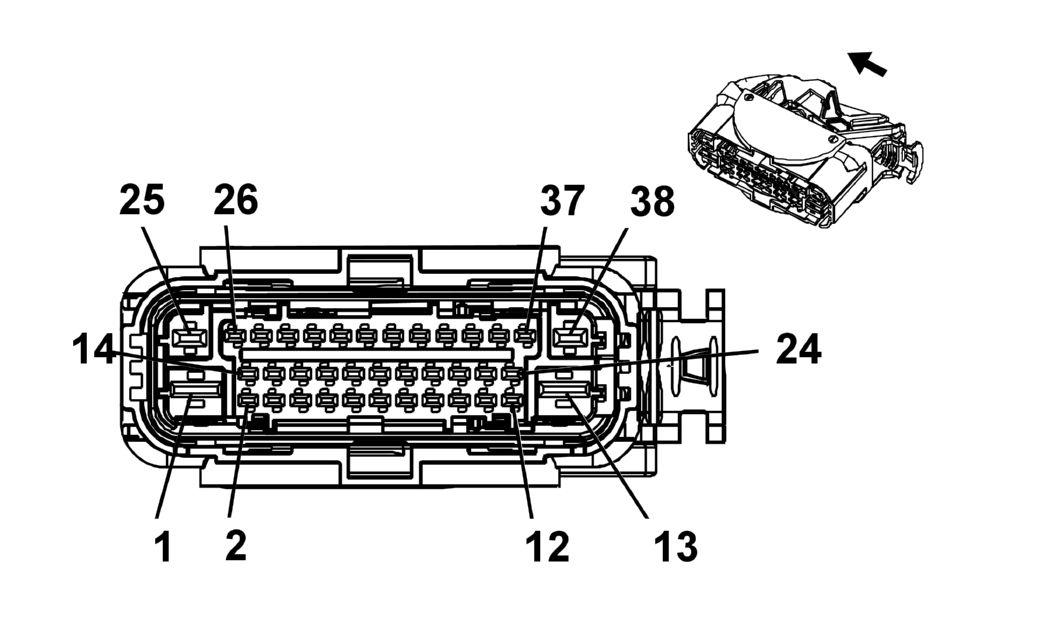

Connector Part Information
- Harness Type: Body
- OEM Connector: 13710771
- Service Connector: 19300486
- Description: 38-Way F 1.5, 2.8, 4.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13578852 |
J-35616-14 (GN) |
EL-38125-560-A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13578853 |
J-35616-2A (GY) |
EL-38125-560-A |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13584537 |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
RD/YE |
442 |
Battery Positive Voltage |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
YE |
872 |
Wheel Speed Sensor Signal Right Front |
III |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
GN/GY |
333 |
Brake Fluid Level Sensor Signal |
III |
- |
| 8 |
0.35 |
GY |
830 |
Wheel Speed Sensor Signal Left Front |
III |
- |
| 9 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
4 |
BK |
1450 |
Ground |
I |
- |
| 14 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
III |
- |
| 15 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
III |
- |
| 16 |
0.35 |
GY/BN |
7065 |
Wheel Speed Sensor Control Right Front |
III |
- |
| 17 |
0.35 |
GY/YE |
7128 |
Wheel Speed Sensor Control Right Rear |
III |
- |
| 18 |
0.35 |
BU |
884 |
Wheel Speed Sensor Signal Left Rear |
III |
- |
| 19 |
0.35 |
GY/WH |
7064 |
Wheel Speed Sensor Control Left Front |
III |
- |
| 20 |
0.35 |
WH |
6106 |
High Speed GMLAN Serial Data (-) 2 |
III |
- |
| 21 - 24 |
- |
- |
- |
Not Occupied |
- |
- |
| 25 |
2 |
RD/YE |
3740 |
Battery Positive Voltage |
II |
- |
| 26 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
III |
- |
| 27 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
III |
- |
| 28 |
0.35 |
WH/BU |
5986 |
Serial Data Communication Enable |
III |
- |
| 29 |
0.35 |
VT |
882 |
Wheel Speed Sensor Signal Right Rear |
III |
- |
| 30 |
- |
- |
- |
Not Occupied |
- |
- |
| 31 |
0.35 |
GY/BK |
7127 |
Wheel Speed Sensor Control Left Rear |
III |
- |
| 32 |
- |
- |
- |
Not Occupied |
- |
- |
| 33 |
0.35 |
BU/YE |
6105 |
High Speed GMLAN Serial Data (+) 2 |
III |
- |
| 34 - 37 |
- |
- |
- |
Not Occupied |
- |
- |
| 38 |
1.5 |
BK |
1450 |
Ground |
II |
- |
