K111 Fuel Pump Driver Control Module (LFV/LTG)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

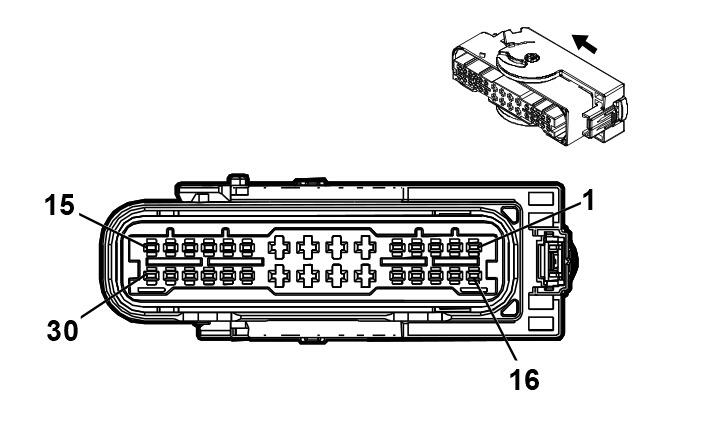

Connector Part Information
- Harness Type: Fuel Tank
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 30-Way F 1.5, 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
BU |
7302 |
Intake Manifold Tuning Valve (IMTV) Control - Signal |
I |
- |
| 3 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
2.0 |
RD/VT |
2640 |
Battery Positive Voltage |
I |
- |
| 8 |
2.5 |
GY |
120 |
Fuel Pump Control |
I |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
YE/RD |
2709 |
Fuel Tank Pressure Sensor 5V Reference |
I |
- |
| 11 |
0.5 |
BU/WH |
890 |
Fuel Tank Pressure Sensor Signal |
I |
- |
| 12 |
0.5 |
BN/RD |
7445 |
Fuel Line Pressure Sensor 5V Reference |
I |
- |
| 13 |
0.5 |
BU/VT |
1589 |
Primary Fuel Level Sensor Signal |
I |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.5 |
WH |
4499 |
High Speed GMLAN Serial Data (-) 7 |
I |
- |
| 16 |
0.5 |
VT/YE |
5985 |
Accessory Wakeup Serial Data |
I |
- |
| 17 |
0.5 |
VT/GY |
139 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 18 |
0.5 |
GN/GY |
465 |
Fuel Pump Primary Relay Control |
I |
- |
| 19 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.5 |
WH |
1310 |
EVAP Canister Vent Solenoid Control |
I |
- |
| 22 |
2.0 |
BK |
550 |
Ground |
I |
- |
| 23 |
0.5 |
BU |
7443 |
Fuel System Control Module Shield Ground Extension |
I |
- |
| 24 |
2.5 |
BK/GN |
1580 |
Fuel Pump Low Reference |
I |
- |
| 25 |
0.5 |
BK/BN |
6284 |
Fuel Tank Vapor Pressure Sensor Low Reference |
I |
- |
| 26 |
0.5 |
BU/WH |
7446 |
Fuel Line Pressure Sensor Signal |
I |
- |
| 27 |
0.5 |
BK/YE |
7447 |
Fuel Line Pressure Sensor Low Reference |
I |
- |
| 28 |
0.5 |
BK/GN |
6281 |
Fuel Level Sensor Low Reference |
I |
- |
| 29 |
- |
- |
- |
Not Occupied |
- |
- |
| 30 |
0.35 |
BU/BN |
4498 |
High Speed GMLAN Serial Data (+) 7 |
I |
- |
