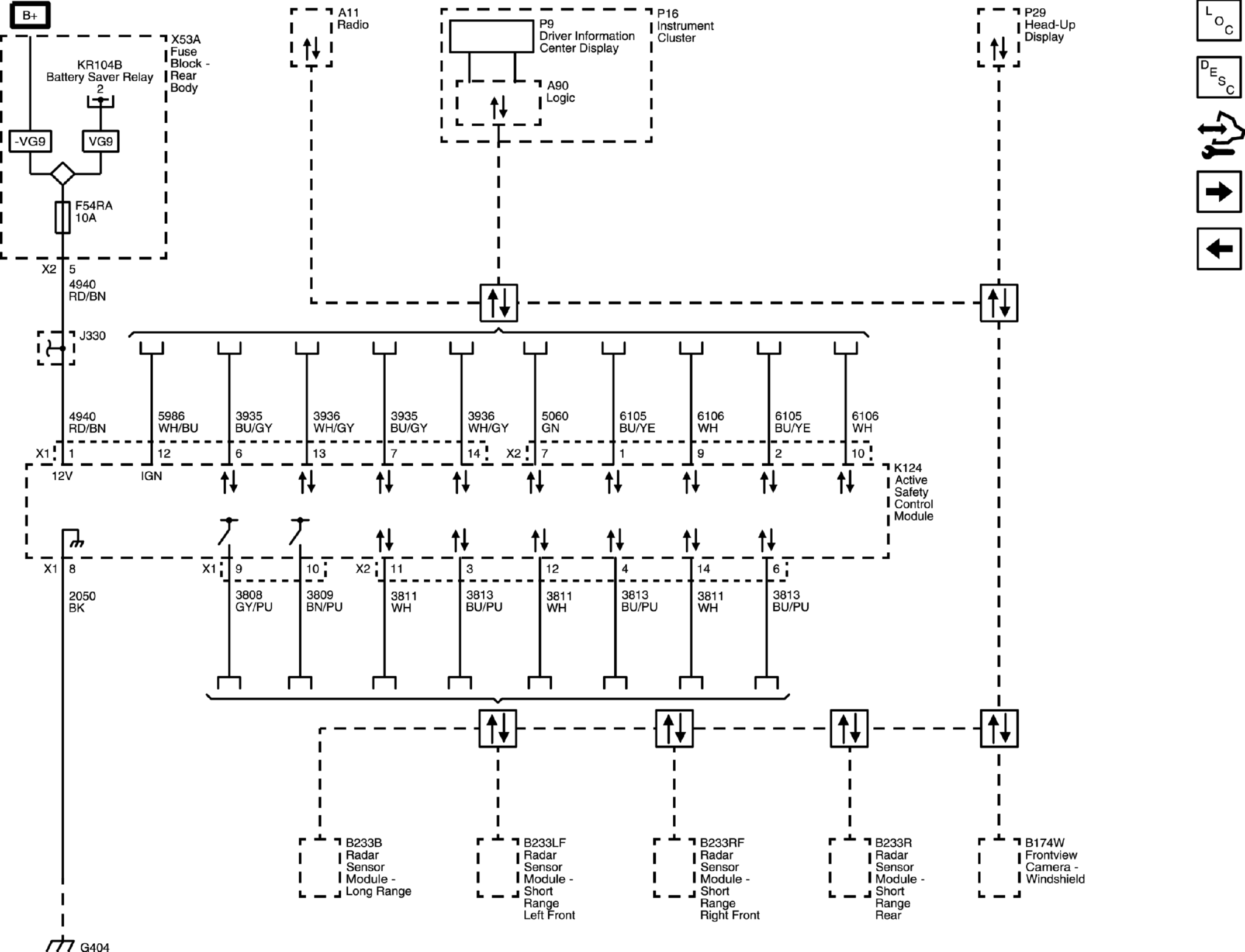

Collision Avoidance - Module Power, Ground, and Serial Data (UGN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
