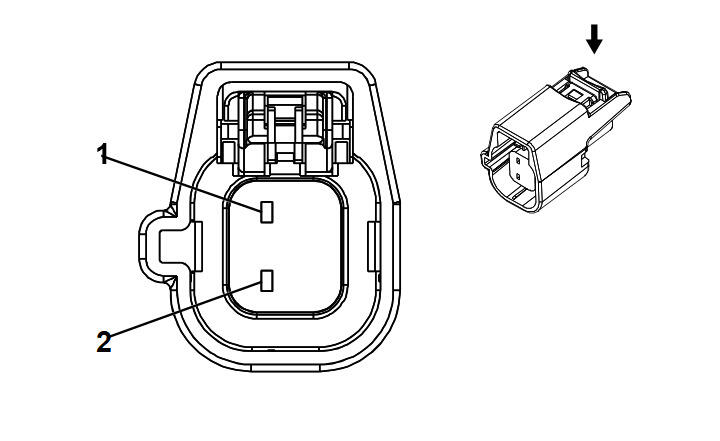

B118B Windshield Washer Fluid Level Switch
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13593220
- Service Connector: 13593220
- Description: 2-Way F 1.5 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
PU |
185 |
Low Washer Fluid Indicator Control |
I |
- |
| 2 |
0.5 |
BK |
1050 |
Ground |
I |
- |
