B47 Fuel Pressure Sensor
 Courtesy of GENERAL MOTORS COMPANY
|

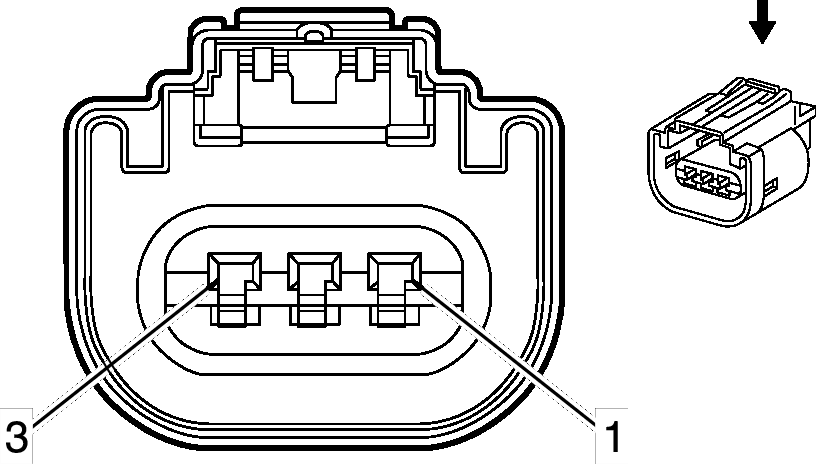

Connector Part Information
- Harness Type: Fuel Injection
- OEM Connector: 13503514
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU/WH |
7446 |
Fuel Line Pressure Sensor Signal |
I |
- |
| 2 |
0.5 |
BK/YE |
7447 |
Fuel Line Pressure Sensor Low Reference |
I |
- |
| 3 |
0.5 |
BN/RD |
7445 |
Fuel Line Pressure Sensor 5V Reference |
I |
- |
