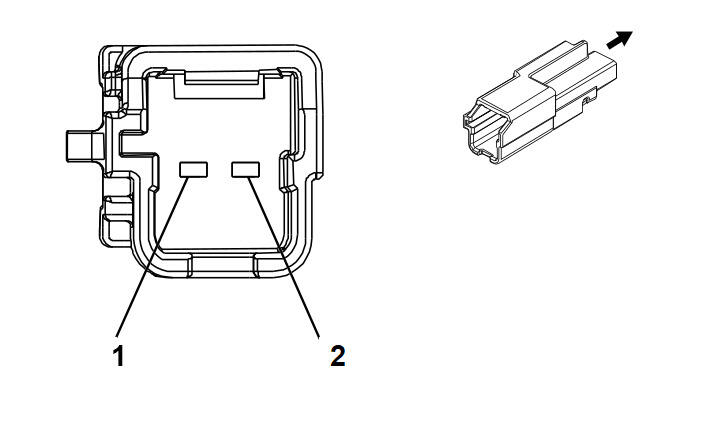

B77LF Radio Volume Compensator Interior Noise Microphone - Left Front
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 13588641
- Service Connector: 19332376
- Description: 2-Way M 1.2 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/BK |
3008 |
Noise Reduction Microphone 1 Low Reference |
I |
NKC |
| 2 |
0.5 |
GN/BN |
3005 |
Noise Reduction Microphone 1 Signal |
I |
NKC |
