Installation Procedure

  1. GM4310677Courtesy of GENERAL MOTORS COMPANY

    Generator (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Bolt (1) Install and tighten [2x] 22 N.m (16 lb ft)
  3. GM4295383Courtesy of GENERAL MOTORS COMPANY

    Drive Belt Idler Pulley (2) - Install - Drive Belt Idler Pulley Replacement

  4. GM4288970Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (4) - Connect

  5. Battery Positive Cable (1) - Install
  6. Battery Positive Cable Nut (2) @ Generator - Install and tighten 15 N.m (11 lb ft)
  7. Protective Cap (3) - Install
  8. GM4283461Courtesy of GENERAL MOTORS COMPANY

    Install the drive belt. (1) - Install - Drive Belt Replacement

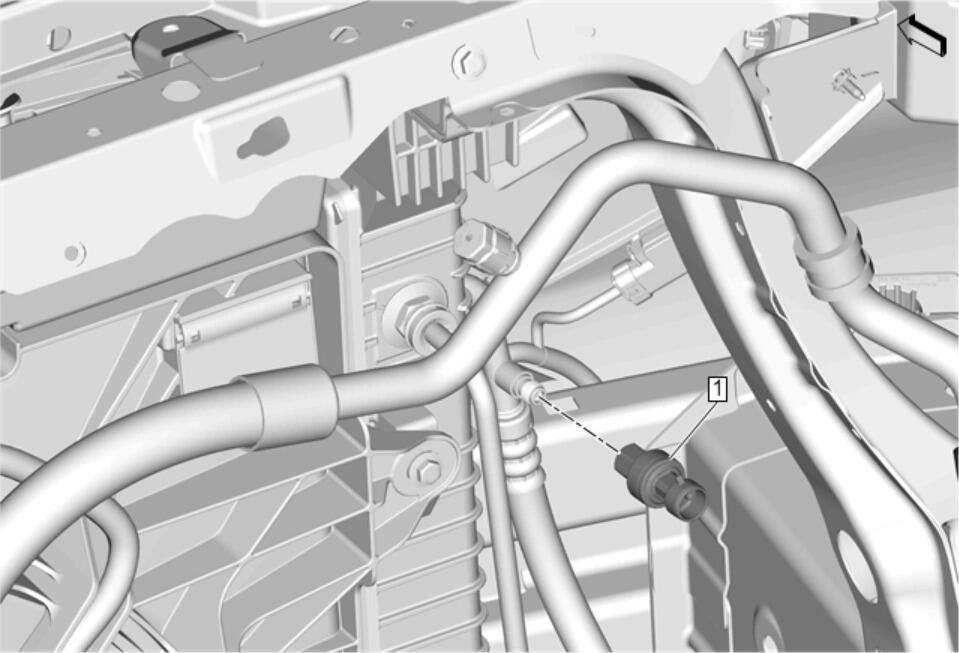

  9. GM4373951Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Refrigerant Pressure Sensor (1) - Install - Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

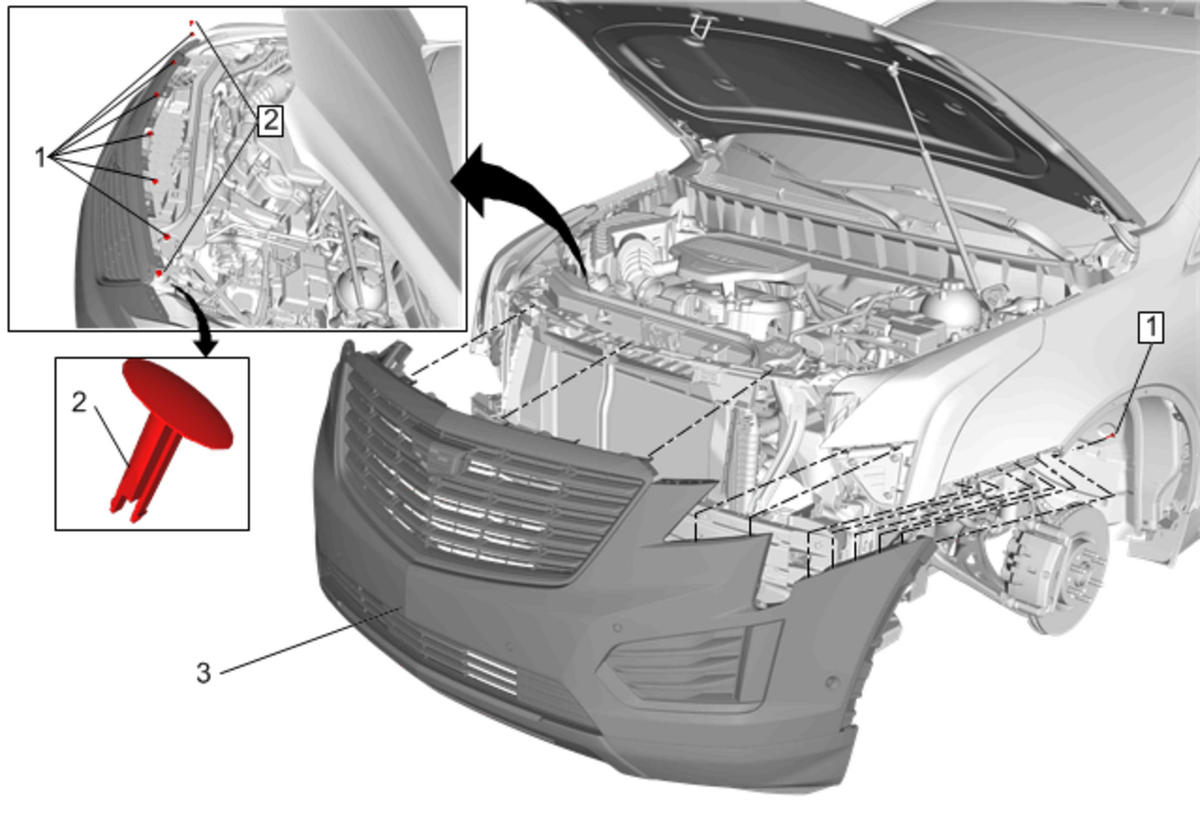

  10. GM4498533Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (3) - Install - Front Bumper Fascia Replacement

  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
