Rear Closure Hands Free Module Replacement

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

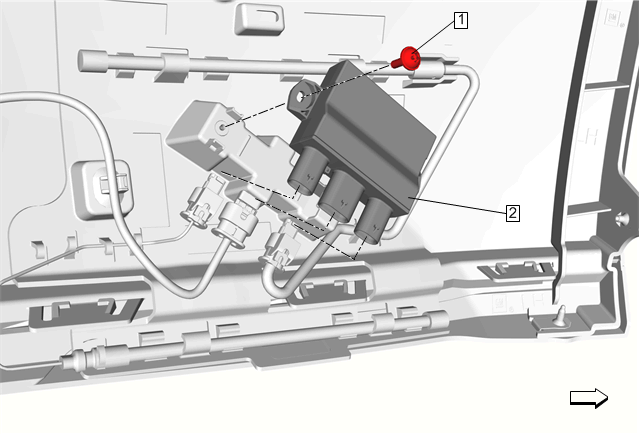

Callout	Component Name
Preliminary Procedure Rear Closure Hands Free Sensor Shield Replacement
1	Rear Closure Hands Free Module Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5N.m (22 lb in)
2	Rear Closure Hands Free Module Procedure Disconnect all electrical connectors. Release the retaining tab and slide the module to the rear and remove.

Callout

Component Name

Preliminary Procedure
Rear Closure Hands Free Sensor Shield Replacement

Rear Closure Hands Free Module Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5N.m (22 lb in)

Rear Closure Hands Free Module

Procedure

Disconnect all electrical connectors.
Release the retaining tab and slide the module to the rear and remove.
