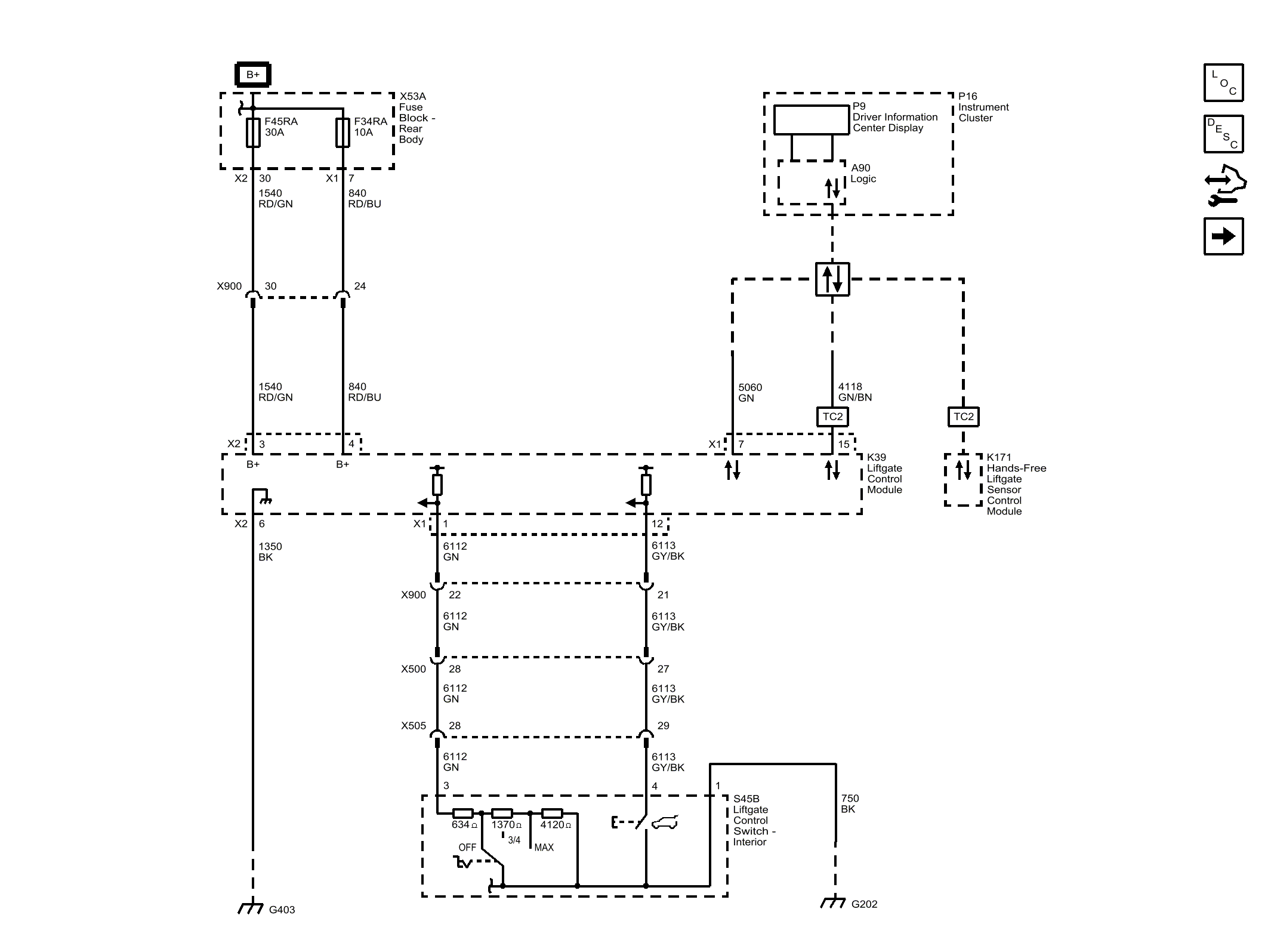

Power, Ground, Serial Data and Front Controls

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
GM4664317Courtesy of GENERAL MOTORS COMPANY
