B14A Transmission Output Shaft Speed Sensor (HP4)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

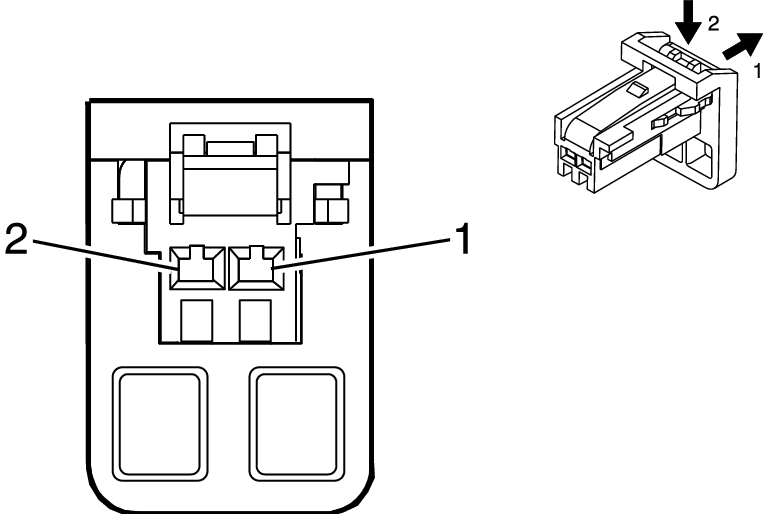

Connector Part Information
- Harness Type: Transmission
- OEM Connector: 33145080
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.2 OCS Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT |
3604 |
Transmission Output Speed Sensor Supply |
I |
- |
| 2 |
0.5 |
RD |
3098 |
Output Speed (Digital) Signal |
I |
- |
