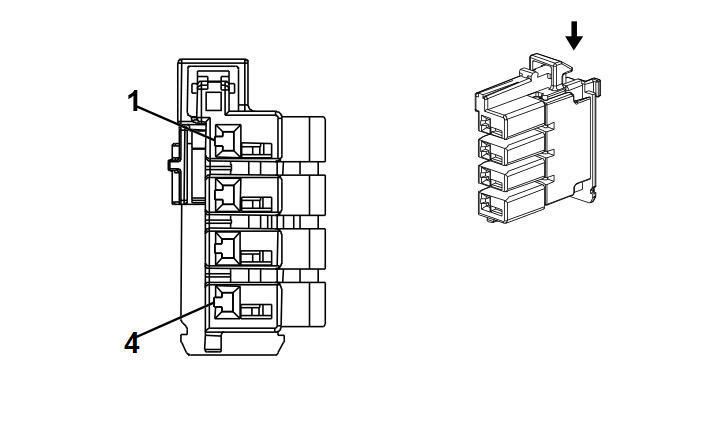

B15 Transmission Internal Mode Switch (M3E)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Transmission
- OEM Connector: 2203702-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2 MCON Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/BU |
596 |
5V Reference |
I |
- |
| 2 |
0.5 |
GN/YE |
5724 |
Ignition Mode Switch Mode Control |
I |
- |
| 3 |
0.5 |
BK/GY |
3927 |
IMS Mode Switch Low Reference |
I |
- |
| 4 |
0.5 |
WH/BK |
5726 |
Ignition Mode Switch Mode Control Backup |
I |
- |
