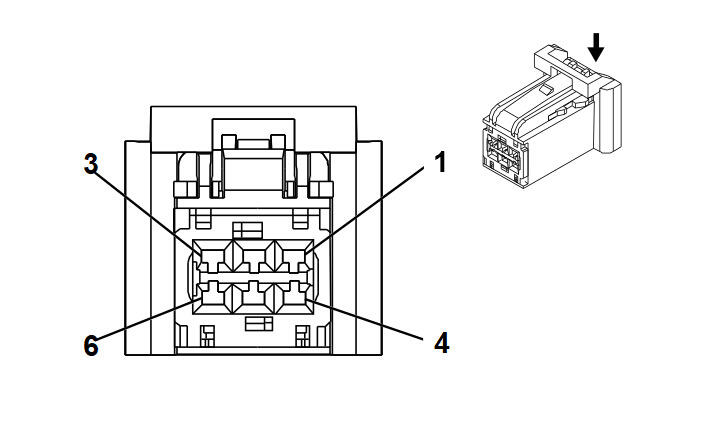

B228A Drive Motor 1 Position Sensor (HP4)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Drive Motor 1
- OEM Connector: 33134940
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 1.2 OCS Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
GY/WH |
7652 |
Traction Power Inverter Module Resolver 1 S3 Signal |
I |
- |
| 2 |
- |
YE/BK |
7649 |
Traction Power Inverter Module Resolver 1 S1 Signal |
I |
- |
| 3 |
- |
GN |
7645 |
Traction Power Inverter Module Resolver 1 Excitation Signal Positive |
I |
- |
| 4 |
- |
PK |
7648 |
Traction Power Inverter Module Traction Power Inverter Module Resolver 1 Excitation Signal Negative |
I |
- |
| 5 |
- |
RD |
7647 |
Transmission Traction Power Inverter Module Resolver 1 S2 Signal |
I |
- |
| 6 |
- |
BU |
7646 |
Transmission Traction Power Inverter Module Resolver 1 S4 Signal |
I |
- |
